Installation [09/2021 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, 2023 Toyota Corolla Cross, and 2022 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL ROOF DRIP SIDE FINISH MOULDING CLIP

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

When installing 2 new roof drip side finish moulding clips, remove any adhesive remaining where the roof drip side finish moulding clips will be installed on the vehicle body and clean the vehicle body with a non-residue solvent.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

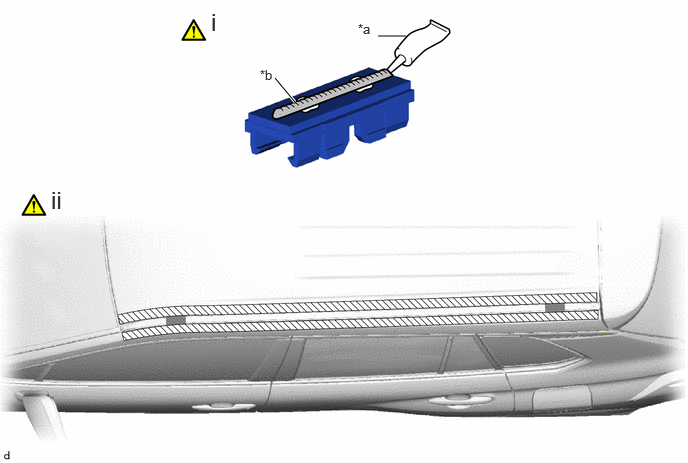

*a	Adhesive	*b	2.0 to 3.0 mm Bead of Adhesive
	Primer Application	-	-

Apply a 2.0 to 3.0 mm (0.0787 to 0.118 in.) bead of adhesive (3M DP-105 or equivalent) to 2 new roof drip side finish moulding clips as shown in the illustration.
HINT:

Adhesive strength (tensile strength): 13.7 Mpa (140.0 kgf/cm₂ , 1987 psi) or more (when the temperature is 23°C (73°F).)
Apply primer to the vehicle body where the roof drip side finish moulding clip will be installed.
NOTE:
Do not let the primer dry.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

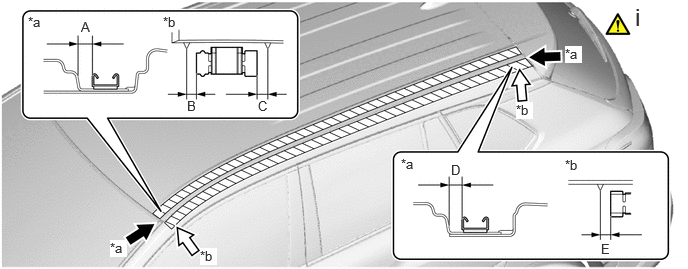

View A

View B

Install the 2 roof drip side finish moulding clips to the positions on the roof panel shown in the illustration. Determine the locations and firmly press and install the 2 roof drip side finish moulding clips.

HINT:

Install the roof drip side finish moulding when 40 minutes or more have elapsed since the roof drip side finish moulding clips were installed.
Initial hardening time: 40 minutes
Complete hardening time: 24 hours

Standard Measurement

Area	Measurement	Area	Measurement
A	5.7 to 6.7 mm (0.224 to 0.264 in.)	B	4.7 mm (0.185 in.)
C	5.1 mm (0.201 in.)	D	4.4 to 5.4 mm (0.173 to 0.213 in.)
E	4.5 to 5.5 mm (0.177 to 0.217 in.)	-	-

INSTALL CENTER ROOF DRIP SIDE FINISH MOULDING
