Removal [09/2021 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, 2023 Toyota Corolla Cross, and 2022 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.

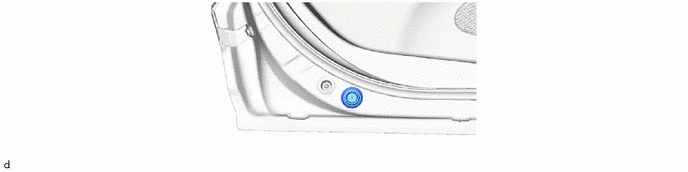

  1. REMOVE HOLE PLUG
    1. GTY1032037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

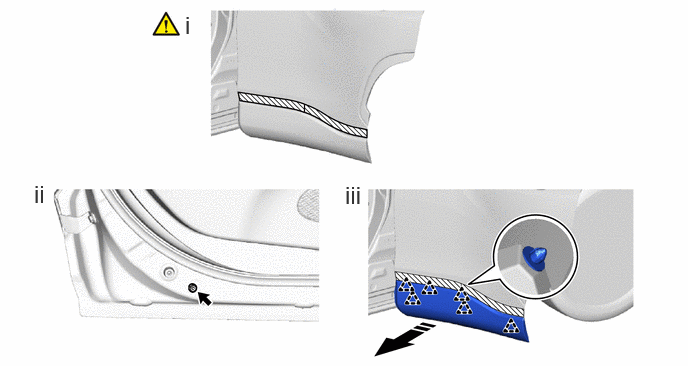

  2. REMOVE REAR DOOR OUTSIDE LOWER MOULDING SUB-ASSEMBLY
    1. GTY1031597Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Apply protective tape around the rear door outside lower moulding sub-assembly as shown in the illustration.
      2. Remove the nut.
      3. Disengage the clips to remove the rear door outside lower moulding sub-assembly as shown in the illustration.

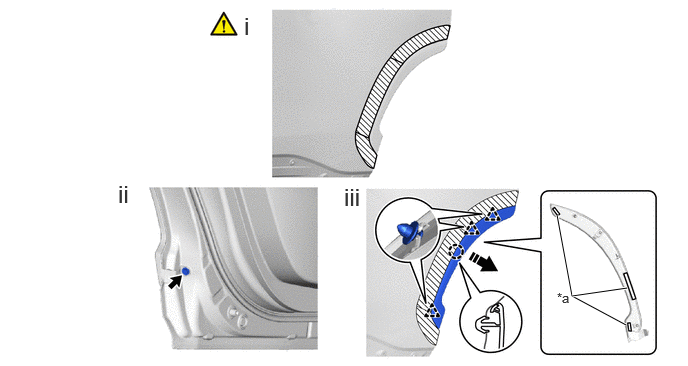

  3. REMOVE REAR DOOR OUTSIDE MOULDING SUB-ASSEMBLY
    1. GTY1031023Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Double-sided Tape - -
      Remove in this Direction - -
      1. Apply protective tape around the rear door outside moulding sub-assembly as shown in the illustration.
      2. Remove the screw.
      3. Disengage the clips and claw, separate the double-sided tape to remove the rear door outside moulding sub-assembly as shown in the illustration.
