Reassembly [09/2021 - ]: Procedure
WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, 2023 Toyota Corolla Cross, and 2022 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.
- INSTALL REAR DOOR OUTSIDE MOULDING UPPER PAD NOTE:
When installing a new rear door outside moulding upper pad, heat the rear door outside lower moulding using a heat light.
Standard
Item Temperature Rear Door Outside Lower Moulding 20 to 30°C (68 to 86°F) WARNING:- Do not touch the heat light and heated parts.
- Touching the heat light may result in burns.
- Touching heated parts for a long time may result in burns.
*a Heated Part *b Heat Light NOTE:Do not heat the rear door outside lower moulding excessively.
*a Location Line - - - Clean the rear door outside lower moulding.
1. Using a heat light, heat the rear door outside lower moulding surface.
2. Remove any remaining double-sided tape from the rear door outside lower moulding.
3. Wipe off any tape adhesive residue with cleaner.
- Install a new rear door outside moulding upper pad.
1. Using a heat light, heat the rear door outside lower moulding.
2. Remove the release paper from the rear door outside moulding upper pad.
HINT:
After removing the release paper, keep the exposed adhesive free from foreign matter.

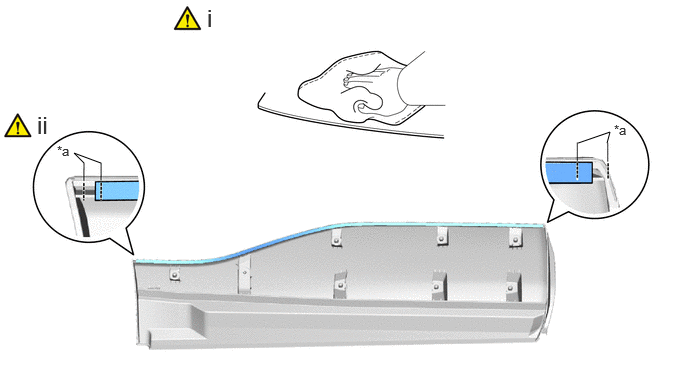

3. Install the rear door outside moulding upper pad as shown in the illustration.
HINT:
- Make sure that the end of the rear door outside moulding upper pad is between the location lines.
- Press the rear door outside moulding upper pad firmly to install it.
- Clean the rear door outside lower moulding.
