Removal [09/2021 - 11/2022]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, 2023 Toyota Corolla Cross, and 2022 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE REAR DOOR GLASS SUB-ASSEMBLY

    Refer to REMOVAL [09/2021 - 11/2022]

  2. REMOVE REAR DOOR BELT MOULDING ASSEMBLY

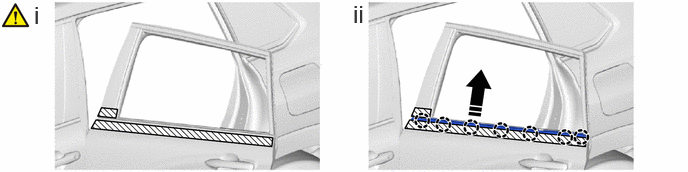

    1. GTY1031974Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Apply protective tape around the rear door belt moulding assembly as shown in the illustration.
      2. Disengage the claws to remove the rear door belt moulding assembly as shown in the illustration.
