Reassembly [09/2021 - ]: Procedure
WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, 2023 Toyota Corolla Cross, and 2022 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.
- INSTALL QUARTER PILLAR PAD NOTE:
When installing a new quarter pillar pad, heat the quarter pillar cover using a heat light.
Standard
Item Temperature Quarter Pillar Cover 20 to 30°C (68 to 86°F) WARNING:- Do not touch the heat light and heated parts.
- Touching the heat light may result in burns.
- Touching heated parts for a long time may result in burns.
*a Heated Part *b Heat Light NOTE:Do not heat the quarter pillar cover excessively.

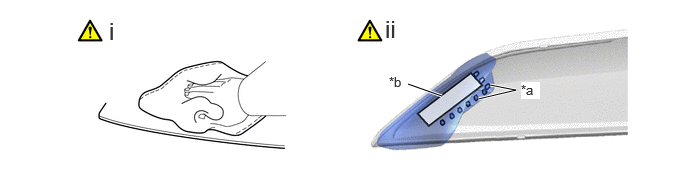

*a Lib *b Double-sided Tape - Clean the quarter pillar cover.
1. Using a heat light, heat the quarter pillar cover surface.
2. Remove any remaining double-sided tape from the quarter pillar cover.
3. Wipe off any tape adhesive residue with cleaner.
NOTE:- Installing the quarter pillar pad with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.
- Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.
- Install a new quarter pillar pad.
1. Using a heat light, heat the quarter pillar cover.
2. Remove the release paper from the quarter pillar pad.
HINT:
After removing the release paper, keep the exposed adhesive free from foreign matter.
3. Install the quarter pillar pad as shown in the illustration.
HINT:
- Install the quarter pillar pad along the lib on the quarter pillar cover.
- Press the quarter pillar pad firmly to install it.
- Clean the quarter pillar cover.
