Disassembly [09/2021 - ]: Procedure
WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, 2023 Toyota Corolla Cross, and 2022 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.
- REMOVE QUARTER PILLAR PAD NOTE:
When removing the quarter pillar pad, if the double-sided tape is difficult to remove, heat the quarter pillar cover and quarter pillar pad using a heat light.
Standard
Item Temperature Quarter Pillar Cover 20 to 30 °C (68 to 86 °F) Quarter Pillar Pad WARNING:- Do not touch the heat light and heated parts.
- Touching the heat light may result in burns.
- Touching heated parts for a long time may result in burns.

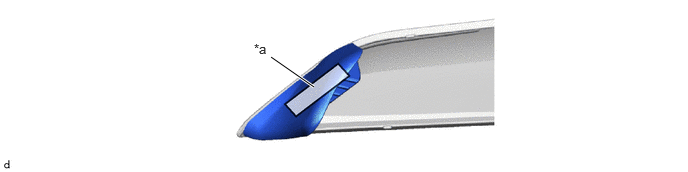

*a Heated Part *b Heat Light NOTE:Do not heat the quarter pillar cover and quarter pillar pad excessively.
