Installation [12/2024 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, 2023 Toyota Corolla Cross, and 2022 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL SYMBOL EMBLEM
    1. GTY1030913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Location Pin - -
      1. Clean the vehicle body surface.

        1. Using a heat light, heat the vehicle body surface.

        2. Remove any remaining double-sided tape from the vehicle body.

        3. Wipe off any tape adhesive residue with non-residue solvent.

        NOTE:
        • Installing the symbol emblem with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.
        • Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.
      2. Install a new symbol emblem.

        1. Using a heat light, heat the vehicle body and symbol emblem.

        2. Remove the release paper from the symbol emblem.

        HINT:

        After removing the release paper, keep the exposed adhesive free from foreign matter.

        3. Engage the location pins to install the symbol emblem as shown in the illustration.

        HINT:

        Press the symbol emblem firmly to install it.

  2. INSTALL NO. 4 LUGGAGE COMPARTMENT DOOR NAME PLATE (for AWD)
    1. GTY1031841Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Reference Values *b End of R

      Standard Measurement

      Area Measurement Area Measurement
      A 144 mm (5.669 in.) B 55.5 mm (2.185 in.)
      C 188.9 mm (7.437 in.) D 186.5 mm (7.343 in.)
      1. Clean the vehicle body surface.

        1. Using a heat light, heat the vehicle body surface.

        2. Remove any remaining double-sided tape from the vehicle body.

        3. Wipe off any tape adhesive residue with non-residue solvent.

        NOTE:
        • Installing the No. 4 luggage compartment door name plate with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.
        • Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.
      2. Install a new No. 4 luggage compartment door name plate.

        1. Using a heat light, heat the vehicle body and No. 4 luggage compartment door name plate.

        2. Remove the release paper from the No. 4 luggage compartment door name plate.

        HINT:

        After removing the release paper, keep the exposed adhesive free from foreign matter.

        3. Install the No. 4 luggage compartment door name plate as shown in the illustration.

        HINT:

        Press the No. 4 luggage compartment door name plate firmly to install it.

  3. INSTALL NO. 2 BACK DOOR NAME PLATE
    1. GTY1031768Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Reference Values *b End of R

      Standard Measurement

      Area Measurement Area Measurement
      A 49.1 mm (1.933 in.) B 178.1 mm (7.012 in.)
      C 255.4 mm (10.055 in.) D 258.2 mm (10.165 in.)
      1. Clean the vehicle body surface.

        1. Using a heat light, heat the vehicle body surface.

        2. Remove any remaining double-sided tape from the vehicle body.

        3. Wipe off any tape adhesive residue with non-residue solvent.

        NOTE:
        • Installing the No. 2 back door name plate with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.
        • Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.
      2. Install a new No. 2 back door name plate.

        1. Using a heat light, heat the vehicle body and No. 2 back door name plate.

        2. Remove the release paper from the No. 2 back door name plate.

        HINT:

        After removing the release paper, keep the exposed adhesive free from foreign matter.

        3. Install the No. 2 back door name plate as shown in the illustration.

        HINT:

        Press the No. 2 back door name plate firmly to install it.

  4. INSTALL NO. 5 BACK DOOR NAME PLATE
    1. GTY1031067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Reference Values *b End of R

      Standard Measurement

      Area Measurement Area Measurement
      A 47.5 mm (1.870 in.) B 209.6 mm (8.252 in.)
      C 230.9 mm (9.091 in.) D 233.3 mm (9.185 in.)
      1. Clean the vehicle body surface.

        1. Using a heat light, heat the vehicle body surface.

        2. Remove any remaining double-sided tape from the vehicle body.

        3. Wipe off any tape adhesive residue with non-residue solvent.

        NOTE:
        • Installing the No. 5 back door name plate with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.
        • Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.
      2. Install a new No. 5 back door name plate.

        1. Using a heat light, heat the vehicle body and No. 5 back door name plate.

        2. Remove the release paper from the No. 5 back door name plate.

        HINT:

        After removing the release paper, keep the exposed adhesive free from foreign matter.

        3. Install the No. 5 back door name plate as shown in the illustration.

        HINT:

        Press the No. 5 back door name plate firmly to install it.

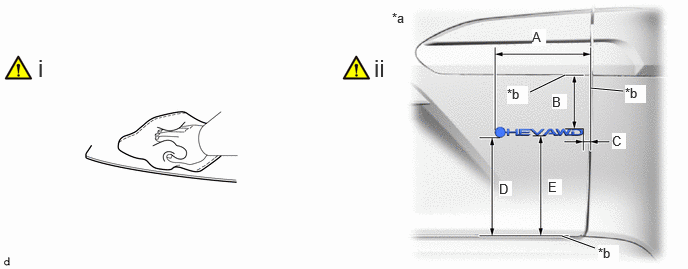

  5. INSTALL NO. 4 LUGGAGE COMPARTMENT DOOR NAME PLATE (for HEV Model)
    1. GTY1252379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Reference Values *b End of R

      Standard Measurement

      Area Measurement Area Measurement
      A 188.6 mm (7.43 in.) B 104.2 mm (4.10 in.)
      C 11.9 mm (0.469 in.) D 194.5 mm (7.66 in.)
      E 199.5 mm (7.85 in.) - -
      1. Clean the vehicle body surface.

        1. Using a heat light, heat the vehicle body surface.

        2. Remove any remaining double-sided tape from the vehicle body.

        3. Wipe off any tape adhesive residue with non-residue solvent.

        NOTE:
        • Installing the No. 4 luggage compartment door name plate with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.
        • Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.
      2. Install a new No. 4 luggage compartment door name plate.

        1. Using a heat light, heat the vehicle body and No. 4 luggage compartment door name plate.

        2. Remove the release paper from the No. 4 luggage compartment door name plate.

        HINT:

        After removing the release paper, keep the exposed adhesive free from foreign matter.

        3. Install the No. 4 luggage compartment door name plate as shown in the illustration.

        HINT:

        Press the No. 4 luggage compartment door name plate firmly to install it.

  6. INSTALL NO. 4 BACK DOOR NAME PLATE (for Type A)
    1. GTY1031134Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Reference Values *b End of R

      Standard Measurement

      Area Measurement Area Measurement
      A 123.7 mm (4.870 in.) B 65 mm (2.559 in.)
      C 232.5 mm (9.154 in.) D 230.7 mm (9.083 in.)
      1. Clean the vehicle body surface.

        1. Using a heat light, heat the vehicle body surface.

        2. Remove any remaining double-sided tape from the vehicle body.

        3. Wipe off any tape adhesive residue with non-residue solvent.

        NOTE:
        • Installing the No. 4 back door name plate with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.
        • Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.
      2. Install a new No. 4 back door name plate.

        1. Using a heat light, heat the vehicle body and No. 4 back door name plate.

        2. Remove the release paper from the No. 4 back door name plate.

        HINT:

        After removing the release paper, keep the exposed adhesive free from foreign matter.

        3. Install the No. 4 back door name plate as shown in the illustration.

        HINT:

        Press the No. 4 back door name plate firmly to install it.

  7. INSTALL NO. 4 BACK DOOR NAME PLATE (for Type B)
    1. GTY1031830Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Reference Values *b End of R

      Standard Measurement

      Area Measurement Area Measurement
      A 146.3 mm (5.760 in.) B 51.2 mm (2.016 in.)
      C 233 mm (9.173 in.) D 230.3 mm (9.067 in.)
      1. Clean the vehicle body surface.

        1. Using a heat light, heat the vehicle body surface.

        2. Remove any remaining double-sided tape from the vehicle body.

        3. Wipe off any tape adhesive residue with non-residue solvent.

        NOTE:
        • Installing the No. 4 back door name plate with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.
        • Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.
      2. Install a new No. 4 back door name plate.

        1. Using a heat light, heat the vehicle body and No. 4 back door name plate.

        2. Remove the release paper from the No. 4 back door name plate.

        HINT:

        After removing the release paper, keep the exposed adhesive free from foreign matter.

        3. Install the No. 4 back door name plate as shown in the illustration.

        HINT:

        Press the No. 4 back door name plate firmly to install it.

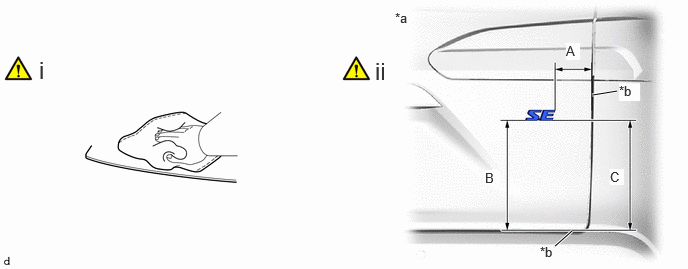

  8. INSTALL NO. 4 BACK DOOR NAME PLATE (for Type C)
    1. GTY1251793Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Reference Values *b End of R

      Standard Measurement

      Area Measurement Area Measurement
      A 68.2 mm (2.68 in.) B 225.3 mm (8.87 in.)
      C 226.1 mm (8.90 in.) - -
      1. Clean the vehicle body surface.

        1. Using a heat light, heat the vehicle body surface.

        2. Remove any remaining double-sided tape from the vehicle body.

        3. Wipe off any tape adhesive residue with non-residue solvent.

        NOTE:
        • Installing the No. 4 back door name plate with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.
        • Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.
      2. Install a new No. 4 back door name plate.

        1. Using a heat light, heat the vehicle body and No. 4 back door name plate.

        2. Remove the release paper from the No. 4 back door name plate.

        HINT:

        After removing the release paper, keep the exposed adhesive free from foreign matter.

        3. Install the No. 4 back door name plate as shown in the illustration.

        HINT:

        Press the No. 4 back door name plate firmly to install it.

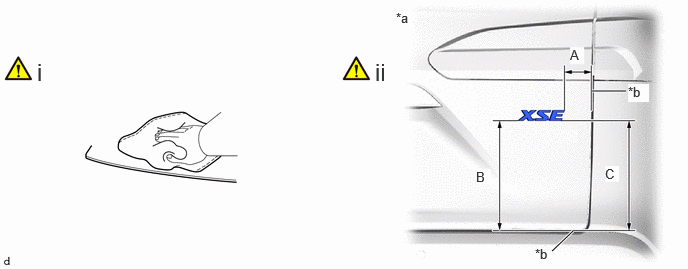

  9. INSTALL NO. 4 BACK DOOR NAME PLATE (for Type D)
    1. GTY1250893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Reference Values *b End of R

      Standard Measurement

      Area Measurement Area Measurement
      A 50.6 mm (1.99 in.) B 225.1 mm (8.86 in.)
      C 226.5 mm (8.92 in.) - -
      1. Clean the vehicle body surface.

        1. Using a heat light, heat the vehicle body surface.

        2. Remove any remaining double-sided tape from the vehicle body.

        3. Wipe off any tape adhesive residue with non-residue solvent.

        NOTE:
        • Installing the No. 4 back door name plate with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.
        • Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.
      2. Install a new No. 4 back door name plate.

        1. Using a heat light, heat the vehicle body and No. 4 back door name plate.

        2. Remove the release paper from the No. 4 back door name plate.

        HINT:

        After removing the release paper, keep the exposed adhesive free from foreign matter.

        3. Install the No. 4 back door name plate as shown in the illustration.

        HINT:

        Press the No. 4 back door name plate firmly to install it.
