COMPONENTS (INSTALLATION)

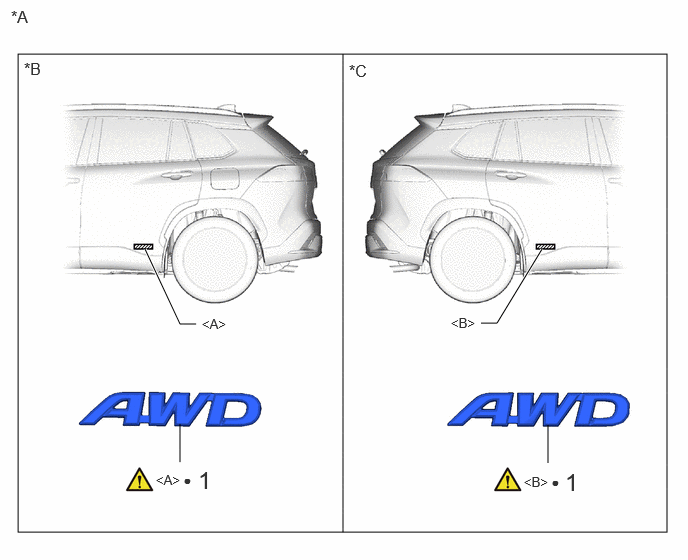

Fig 1: Name Plate Installation Components [11/2022 - 12/2024] (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1	BODY SIDE NAME PLATE	75473C	See step 1	-	-

*A	for AWD	*B	for LH Side
*C	for RH Side	-	-
•	Non-reusable part	-	-

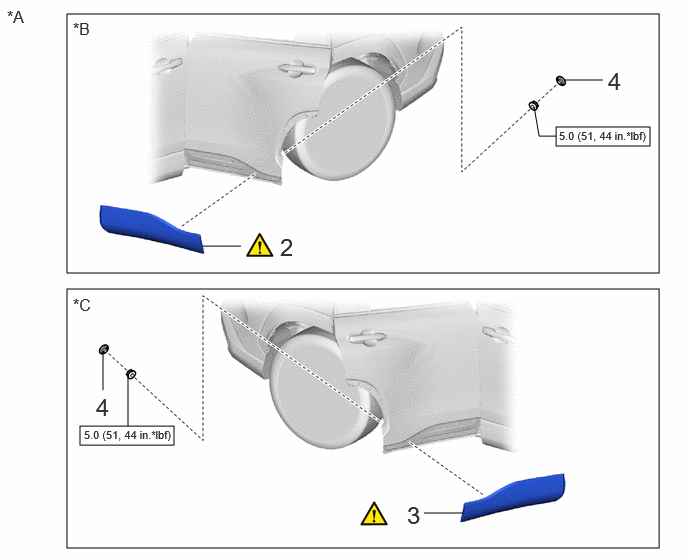

Fig 2: Name Plate Installation Components With Torque Specifications [11/2022 - 12/2024] (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002© TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2	REAR DOOR OUTSIDE LOWER MOULDING SUB-ASSEMBLY LH	75078	-	-	-
3	REAR DOOR OUTSIDE LOWER MOULDING SUB-ASSEMBLY RH	75077	-	-	-
4	HOLE PLUG	-	-	-	-

*A	for AWD	*B	for LH Side
*C	for RH Side	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part

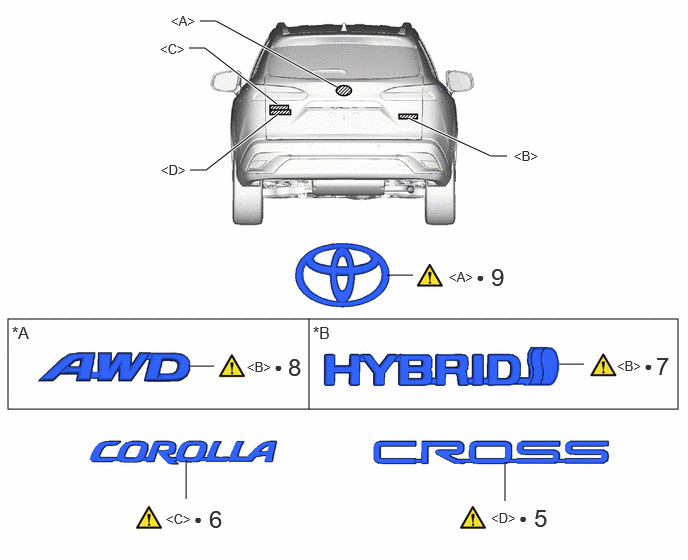

Fig 3: Name Plate Installation Components [11/2022 - 12/2024] (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5	NO. 5 BACK DOOR NAME PLATE	75445A	See step 5	-	-
6	NO. 2 BACK DOOR NAME PLATE	75442A	See step 6	-	-
7	NO. 4 LUGGAGE COMPARTMENT DOOR NAME PLATE	75444C	See step 7	-	-
8	NO. 4 LUGGAGE COMPARTMENT DOOR NAME PLATE	75444C	See step 8	-	-
9	SYMBOL EMBLEM	75741E	See step 9	-	-

*A	for AWD	*B	for HEV Model
•	Non-reusable part	-	-

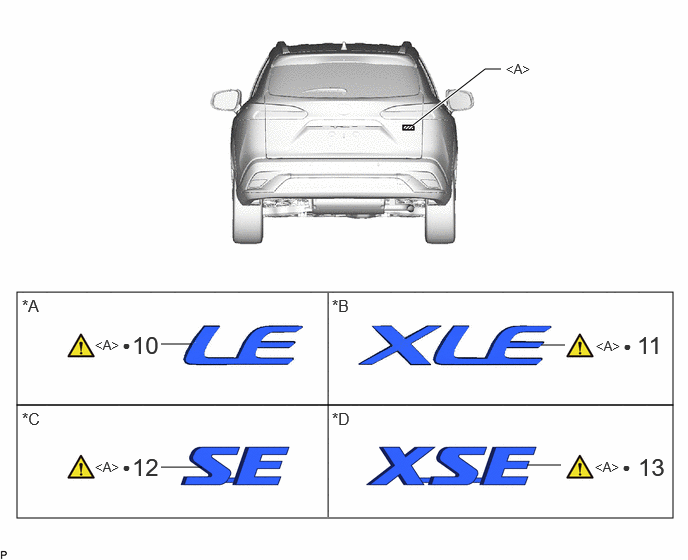

Fig 4: Name Plate Installation Components [11/2022 - 12/2024] (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
10	NO. 4 BACK DOOR NAME PLATE	75444A	See step 10	-	-
11	NO. 4 BACK DOOR NAME PLATE	75444A	See step 11	-	-
12	NO. 4 BACK DOOR NAME PLATE	75444A	See step 12	-	-
13	NO. 4 BACK DOOR NAME PLATE	75444A	See step 13	-	-

*A	for Type A	*B	for Type B
*C	for Type C	*D	for Type D
•	Non-reusable part	-	-

NOTE:

When installing the new name plates or emblems, heat the vehicle body, name plates or emblems using a heat light.

Standard

Item	Temperature
Vehicle Body	40 to 60 °C (104 to 140 °F)
Name Plates or Emblems	20 to 30°C (68 to 86°F)

WARNING:

Do not touch the heat light and heated parts, touching the heat light may result in burns.
Touching heated parts for a long time may result in burns.

*a	Heated Part
*b	Heat Light

NOTE:

Do not heat vehicle body, name plates or emblems excessively.
