Removal [09/2021 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, 2023 Toyota Corolla Cross, and 2022 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE FRONT PILLAR UPPER COVER SUB-ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

When removing the front pillar upper cover sub-assembly, if the double-sided tape is difficult to remove, heat the vehicle body and front pillar upper cover sub-assembly using a heat light.

Standard

Item	Temperature
Vehicle Body	40 to 60°C (104 to 140°F)
Front Pillar Upper Cover Sub-assembly	20 to 30 °C (68 to 86 °F)

WARNING:

Do not touch the heat light and heated parts.
Touching the heat light may result in burns.
Touching heated parts for a long time may result in burns.

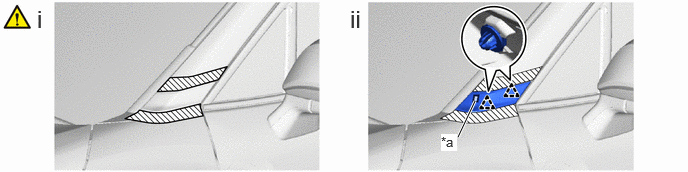

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Heated Part
*b	Heat Light

NOTE:

Do not heat the vehicle body and front pillar upper cover sub-assembly excessively.

Double-sided Tape

Apply protective tape around the front pillar upper cover sub-assembly as shown in the illustration.
Disengage the clips and separate the double-sided tape to remove the front pillar upper cover sub-assembly.
