Installation [09/2021 - ]: Procedure
WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, 2023 Toyota Corolla Cross, and 2022 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.
- INSTALL FRONT PILLAR UPPER COVER SUB-ASSEMBLY NOTE:
When installing the front pillar upper cover sub-assembly, heat the vehicle body using a heat light.
Standard
Item Temperature Vehicle Body 40 to 60°C (104 to 140°F) WARNING:- Do not touch the heat light and heated parts.
- Touching the heat light may result in burns.
- Touching heated parts for a long time may result in burns.
*a Heated Part *b Heat Light NOTE:Do not heat the vehicle body excessively.

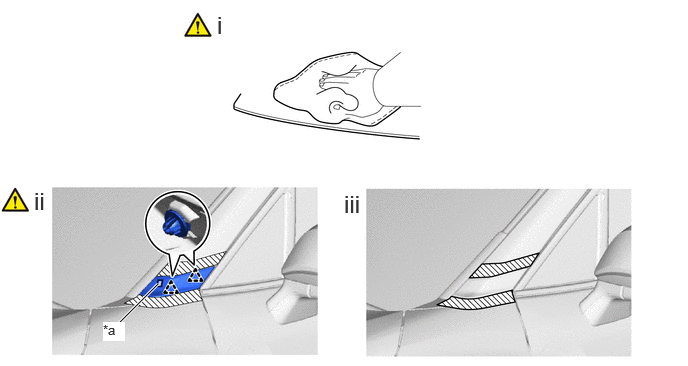

*a Double-sided Tape - - - Clean the vehicle body.
1. Using a heat light, heat the vehicle body surface.
2. Remove any remaining double-sided tape from the vehicle body.
3. Wipe off any tape adhesive residue with cleaner.
NOTE:- Installing the front pillar upper cover sub-assembly with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.
- Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.
- Install the front pillar upper cover sub-assembly.
1. Using a heat light, heat the vehicle body.
2. Remove the release paper from the front pillar upper cover sub-assembly.
HINT:
After removing the release paper, keep the exposed adhesive free from foreign matter.
3. Engage the clips to install the front pillar upper cover sub-assembly.
HINT:
Press the front pillar upper cover sub-assembly firmly to install it.
- Remove the protective tape.
- Clean the vehicle body.
