Removal [09/2021 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, 2023 Toyota Corolla Cross, and 2022 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.

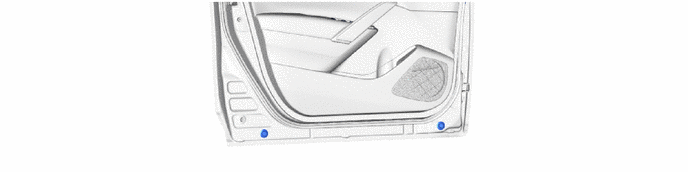

  1. REMOVE HOLE PLUG
    1. GTY1031463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE FRONT DOOR OUTSIDE LOWER MOULDING SUB-ASSEMBLY

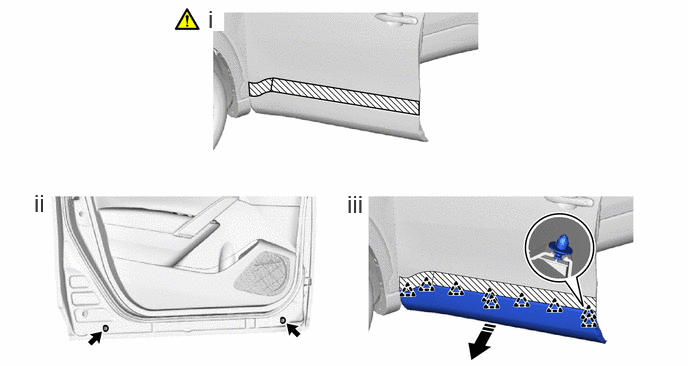

    1. GTY1031575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Apply protective tape around the front door outside lower moulding sub-assembly as shown in the illustration.
      2. Remove the 2 nuts.
      3. Disengage the clips to remove the front door outside lower moulding sub-assembly as shown in the illustration.
