Reassembly [09/2021 - ]: Procedure
WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, 2023 Toyota Corolla Cross, and 2022 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.
- INSTALL FRONT DOOR OUTSIDE MOULDING UPPER PAD NOTE:
When installing a new front door outside moulding upper pad, heat the front door outside lower moulding using a heat light.
Standard
Item Temperature Front Door Outside Lower Moulding 20 to 30°C (68 to 86°F) WARNING:- Do not touch the heat light and heated parts.
- Touching the heat light may result in burns.
- Touching heated parts for a long time may result in burns.
*a Heated Part *b Heat Light NOTE:Do not heat the front door outside lower moulding excessively.

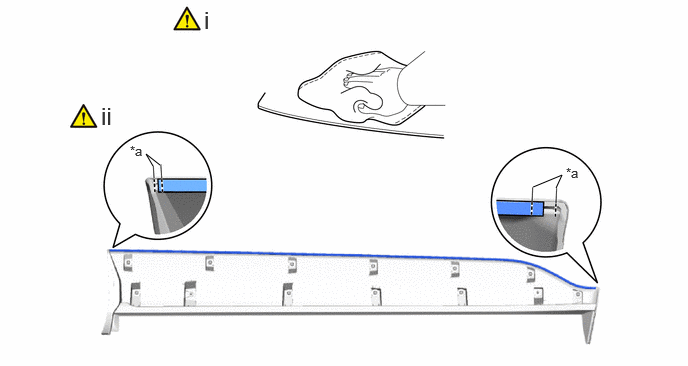

*a Location Line - - - Clean the front door outside lower moulding.
1. Using a heat light, heat the front door outside lower moulding surface.
2. Remove any remaining double-sided tape from the front door outside lower moulding.
3. Wipe off any tape adhesive residue with cleaner.
NOTE:- Installing the front door outside moulding upper pad with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.
- Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.
- Install a new front door outside moulding upper pad.
1. Using a heat light, heat the front door outside lower moulding.
2. Remove the release paper from the front door outside moulding upper pad.
HINT:
After removing the release paper, keep the exposed adhesive free from foreign matter.
3. Install the front door outside moulding upper pad as shown in the illustration.
HINT:
- Make sure that the end of the front door outside moulding upper pad is between the location lines.
- Press the front door outside moulding upper pad firmly to install it.
- Clean the front door outside lower moulding.
