Caution / Notice / Hint
WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, 2023 Toyota Corolla Cross, and 2022 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.

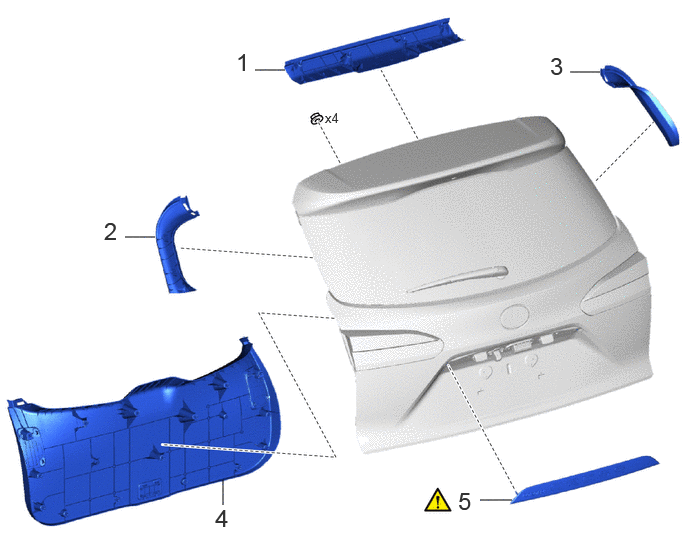

COMPONENTS (REMOVAL)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | BACK DOOR TRIM UPPER PANEL ASSEMBLY | 64790B | - | - | - |
| 2 | BACK DOOR SIDE GARNISH LH | 67938A | - | - | - |
| 3 | BACK DOOR SIDE GARNISH RH | 67937B | - | - | - |
| 4 | BACK DOOR TRIM PANEL ASSEMBLY | 64780A | - | - | - |
| 5 | BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY | - | See step 5 | - | - |
