Reassembly [09/2021 - ]: Procedure
WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, 2023 Toyota Corolla Cross, and 2022 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.
- INSTALL BACK DOOR OUTSIDE GARNISH PROTECTOR NOTE:
When installing a new back door outside garnish protector, heat the back door outside garnish using a heat light.
Standard
Item Temperature Back Door Outside Garnish 20 to 30°C (68 to 86°F) WARNING:- Do not touch the heat light and heated parts.
- Touching the heat light may result in burns.
- Touching heated parts for a long time may result in burns.
*a Heated Part *b Heat Light NOTE:Do not heat the back door outside garnish excessively.

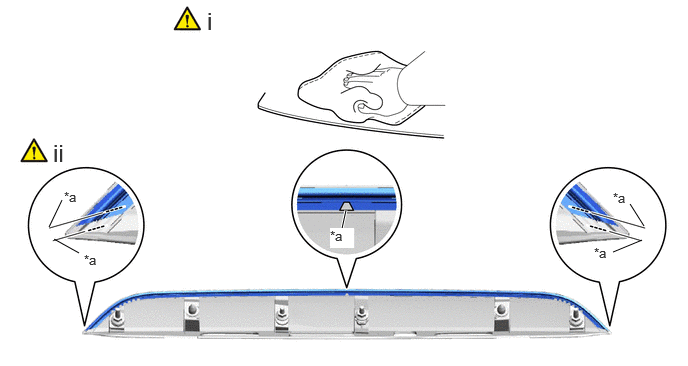

*a Location Line - - - Clean the back door outside garnish.
1. Using a heat light, heat the back door outside garnish surface.
2. Remove any remaining double-sided tape from the back door outside garnish.
3. Wipe off any tape adhesive residue with cleaner.
NOTE:- Installing the back door outside garnish protector with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.
- Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.
- Install a new back door outside garnish protector.
1. Using a heat light, heat the back door outside garnish.
2. Remove the release paper from the back door outside garnish protector.
HINT:
After removing the release paper, keep the exposed adhesive free from foreign matter.
3. Install the back door outside garnish protector as shown in the illustration.
HINT:
- Make sure that the end of the back door outside garnish protector is between the location lines.
- Press the back door outside garnish protector firmly to install it.
- Clean the back door outside garnish.
