Removal [09/2021 - 11/2022]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, 2023 Toyota Corolla Cross, and 2022 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE SYMBOL EMBLEM
    1. GTY1031142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Location pin - -
      1. Apply protective tape around the symbol emblem as shown in the illustration.
      2. Using a moulding remover D, separate the double-sided tape and disengage the location pins to remove the symbol emblem.
        NOTE:

        Be careful not to damage the vehicle body.

      3. Remove the protective tape.
  2. REMOVE NO. 4 LUGGAGE COMPARTMENT DOOR NAME PLATE (for AWD)
    1. GTY1031552Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Piano wire *b Wooden Block
      1. Apply protective tape around the No. 4 luggage compartment door name plate as shown in the illustration.
      2. Remove the No. 4 luggage compartment door name plate.

        1. Insert a piano wire between the vehicle body and No. 4 luggage compartment door name plate.

        2. Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.

        3. Pull the piano wire and cut the double-sided tape that holds the No. 4 luggage compartment door name plate to the vehicle body to remove the No. 4 luggage compartment door name plate.

        NOTE:

        Be careful not to damage the vehicle body.

      3. Remove the protective tape.
  3. REMOVE NO. 4 BACK DOOR NAME PLATE (for Type A)
    1. GTY1031747Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Piano wire *b Wooden Block
      1. Apply protective tape around the No. 4 back door name plate as shown in the illustration.
      2. Remove the No. 4 back door name plate.

        1. Insert a piano wire between the vehicle body and No. 4 back door name plate.

        2. Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.

        3. Pull the piano wire and cut the double-sided tape that holds the No. 4 back door name plate to the vehicle body to remove the No. 4 back door name plate.

        NOTE:

        Be careful not to damage the vehicle body.

      3. Remove the protective tape.
  4. REMOVE NO. 4 BACK DOOR NAME PLATE (for Type B)
    1. GTY1031052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Piano wire *b Wooden Block
      1. Apply protective tape around the No. 4 back door name plate as shown in the illustration.
      2. Remove the No. 4 back door name plate.

        1. Insert a piano wire between the vehicle body and No. 4 back door name plate.

        2. Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.

        3. Pull the piano wire and cut the double-sided tape that holds the No. 4 back door name plate to the vehicle body to remove the No. 4 back door name plate.

        NOTE:

        Be careful not to damage the vehicle body.

      3. Remove the protective tape.
  5. REMOVE NO. 2 BACK DOOR NAME PLATE

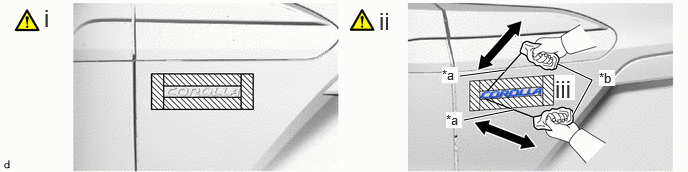

    1. GTY1031422Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Piano wire *b Wooden Block
      1. Apply protective tape around the No. 2 back door name plate as shown in the illustration.
      2. Remove the No. 2 back door name plate.

        1. Insert a piano wire between the vehicle body and No. 2 back door name plate.

        2. Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.

        3. Pull the piano wire and cut the double-sided tape that holds the No. 2 back door name plate to the vehicle body to remove the No. 2 back door name plate.

        NOTE:

        Be careful not to damage the vehicle body.

      3. Remove the protective tape.
  6. REMOVE NO. 5 BACK DOOR NAME PLATE

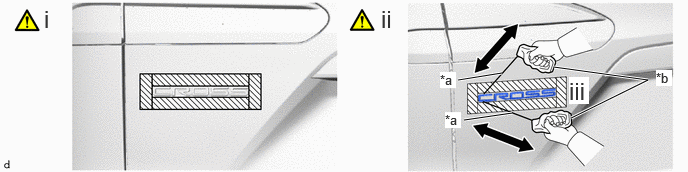

    1. GTY1030963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Piano wire *b Wooden Block
      1. Apply protective tape around the No. 5 back door name plate as shown in the illustration.
      2. Remove the No. 5 back door name plate.

        1. Insert a piano wire between the vehicle body and No. 5 back door name plate.

        2. Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.

        3. Pull the piano wire and cut the double-sided tape that holds the No. 5 back door name plate to the vehicle body to remove the No. 5 back door name plate.

        NOTE:

        Be careful not to damage the vehicle body.

      3. Remove the protective tape.
