Removal [11/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, 2023 Toyota Corolla Cross, and 2022 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.

PRECAUTION

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

WARNING:

Be sure to read Precaution thoroughly before servicing.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to PRECAUTION [11/2022 - ]

NOTE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

Refer to BEFORE DISCONNECTING BATTERY [11/2022 - 11/2023] , or refer to BEFORE DISCONNECTING BATTERY [11/2023 - ]

DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

WARNING:

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

If the airbag deploys for any reason, it may cause a serious accident.

for Gasoline Model
Refer to REMOVAL [11/2022 - ]
for HEV Model
Refer to REMOVAL [11/2022 - ]

REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to PROCEDURE - Step 3

REMOVE DOOR ASSIST GRIP COVER

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to PROCEDURE - Step 4

REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Driver Side)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to PROCEDURE - Step 5

REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Front Passenger Side)

Refer to PROCEDURE - Step 6

REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY
Refer to PROCEDURE - Step 7

REMOVE FRONT DOOR SERVICE HOLE COVER

Refer to PROCEDURE - Step 12

REMOVE SIDE AIRBAG PRESSURE SENSOR

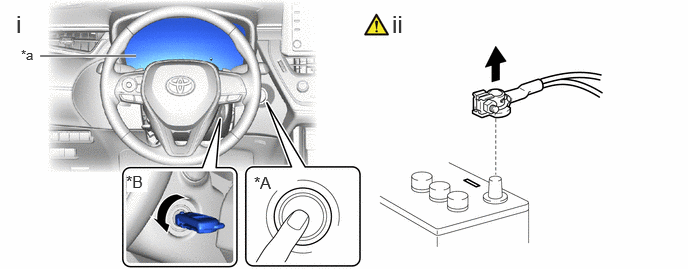

*A	w/ Smart Key System	*B	w/o Smart Key System
*a	Illumination off	-	-

Check that the ignition switch is off.
Check that the cable is disconnected from the negative (-) auxiliary battery terminal.
WARNING:
- Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
- If the airbag deploys for any reason, it may cause a serious accident.

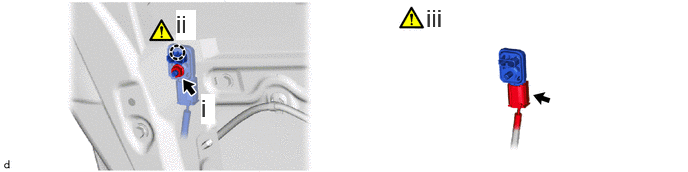

Remove the nut.
NOTE:
Do not reuse the nut.
Disengage the claw to pull out the side airbag pressure sensor.
NOTE:
If the side airbag pressure sensor has been dropped, replace it with a new one.
Disconnect the airbag connector.
NOTE:
When disconnecting any airbag connector, take care not to damage the airbag wire harness.

HINT:

Refer to How to Connect or Disconnect Airbag Connector:

Refer to HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR [09/2021 - ]
