Audio / Video System - Circuit Tests & Symptom Tests (2 Of 2)
>>
Audio And Visual System
>>
Speaker Circuit [12/2019 - 10/2022]
>>
Wiring Diagram
Speaker Circuit [12/2019 - 10/2022]: Wiring Diagram
w/o Stereo Component Amplifier Assembly

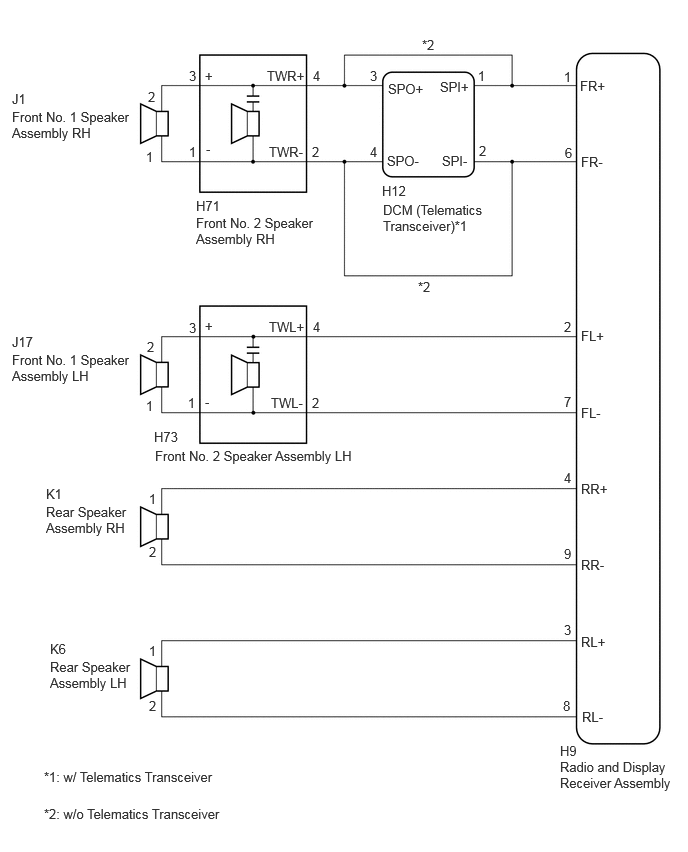

Fig 1: w/o Stereo Component Amplifier Assembly [12/2019 - 10/2022]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
w/ Stereo Component Amplifier Assembly

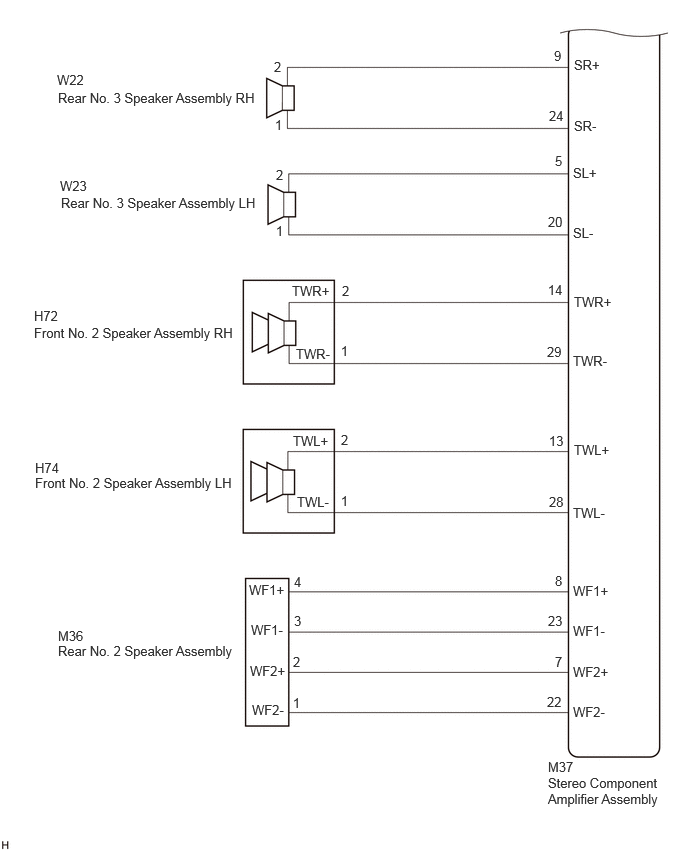

Fig 2: w/ Stereo Component Amplifier Assembly [12/2019 - 10/2022] (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

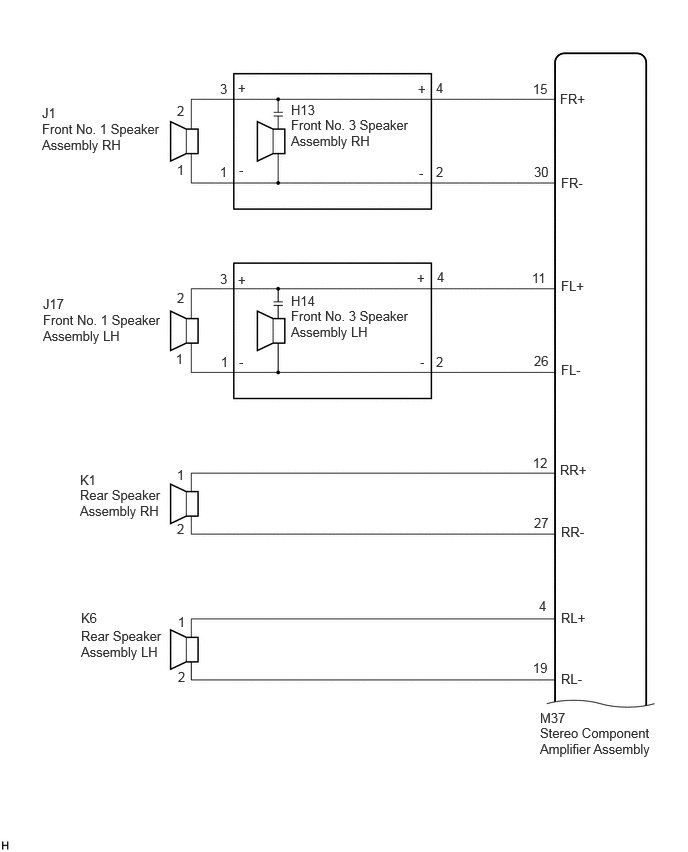

Fig 3: w/ Stereo Component Amplifier Assembly [12/2019 - 10/2022] (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
