Reassembly [10/2021 - ]: Procedure

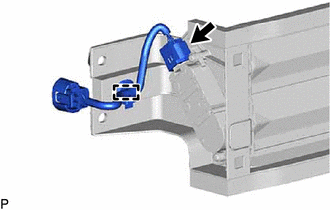

  1. INSTALL NO. 5 ENGINE ROOM WIRE
    1. Connect the connector.
      GTY1110642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the clamp to install the No. 5 engine room wire.
