ELECTRONICALLY CONTROLLED BRAKE SYSTEM (for HV Model)
>>
DTC P0571-00: Brake Switch "A" [12/2019 - ]
>>

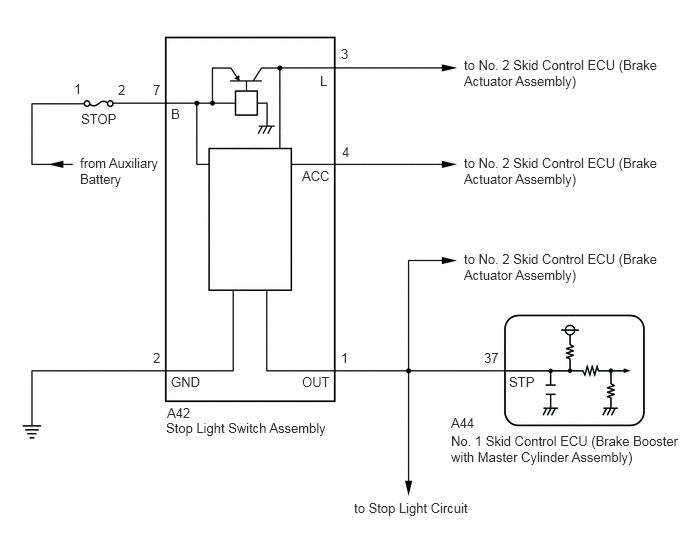

Wiring Diagram
DTC P0571-00: Brake Switch "A" [12/2019 - ]: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
