Section 134 (Electronically Controlled Brake System (HV) - Diagnostic Codes (11 Of 11), Symptom Tests & Circuit Tests)
>>
ELECTRONICALLY CONTROLLED BRAKE SYSTEM (for HV Model)
>>
VSC OFF Switch Circuit [10/2022 - ]
>>

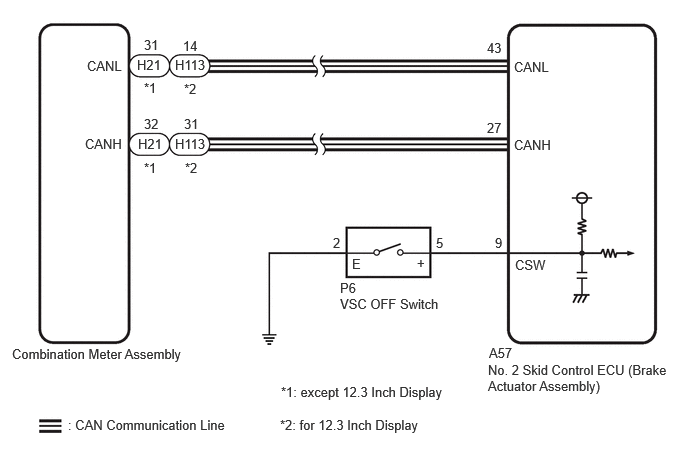

Wiring Diagram
VSC OFF Switch Circuit [10/2022 - ]: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
