Section 134 (Electronically Controlled Brake System (HV) - Diagnostic Codes (11 Of 11), Symptom Tests & Circuit Tests)
>>
ELECTRONICALLY CONTROLLED BRAKE SYSTEM (for HV Model)
>>
Brake Hold Standby Indicator Light Circuit [12/2019 - 10/2022]
>>

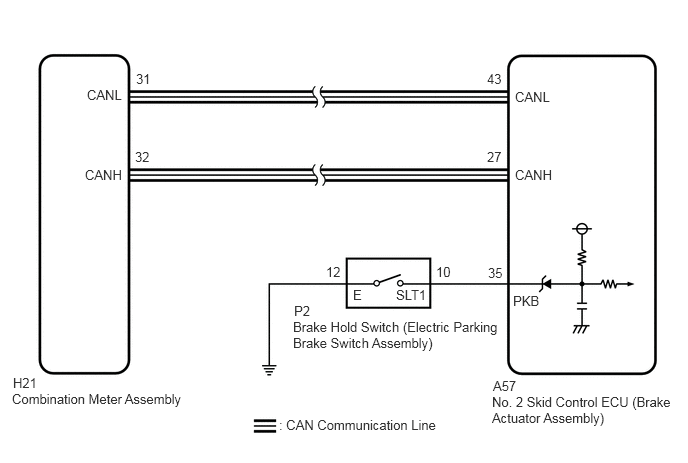

Wiring Diagram
Brake Hold Standby Indicator Light Circuit [12/2019 - 10/2022]: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
