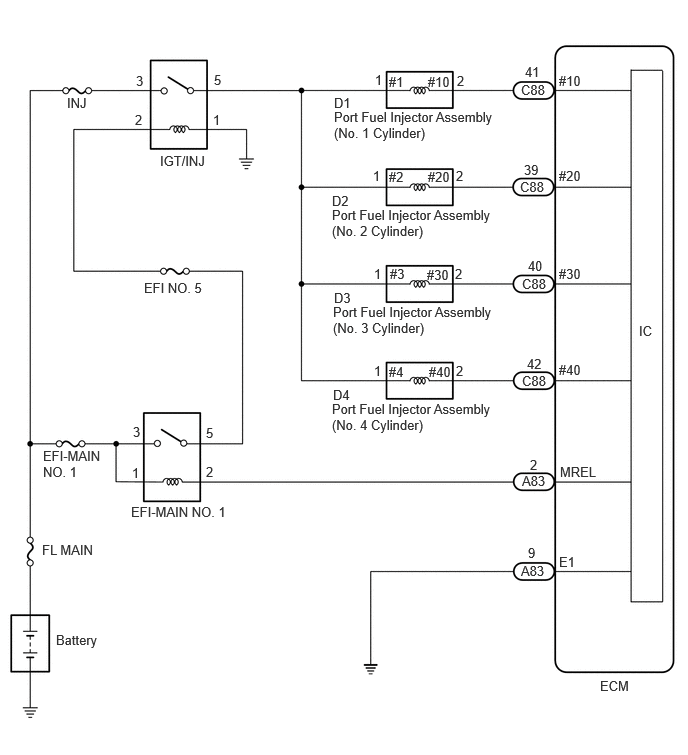

DTC P21CF-13: Cylinder 1 Injector "B" Circuit Open; DTC P21D0-13: Cylinder 2 Injector "B" Circuit Open; DTC P21D1-13: Cylinder 3 Injector "B" Circuit Open; DTC P21D2-13: Cylinder 4 Injector "B" Circuit Open [10/2022 - ]: Wiring Diagram

WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
GTY1103056Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
