Components [10/2022 - ]

WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

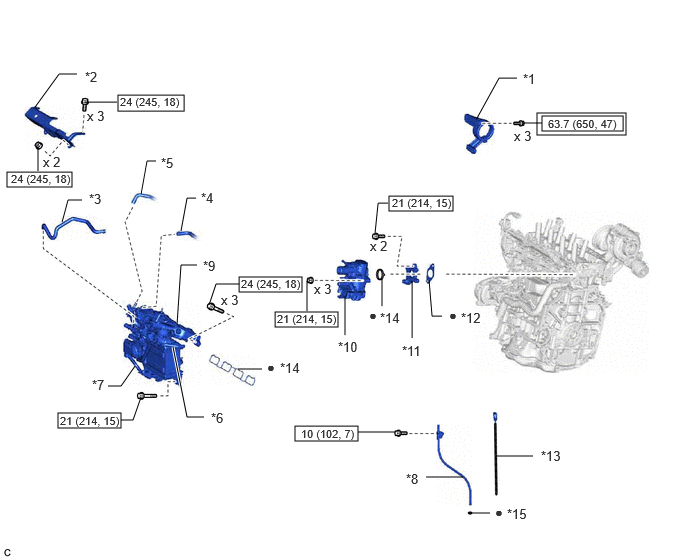

Fig 1: Cylinder Head Gasket Replacement Components With Torque Specifications (1 Of 5)
GTY1105304Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 DRIVE SHAFT BEARING BRACKET *2 FUEL DELIVERY GUARD
*3 NO. 1 TURBO WATER HOSE *4 NO. 3 WATER BY-PASS HOSE
*5 NO. 4 TURBO WATER HOSE *6 NO. 4 WATER BY-PASS HOSE
*7 NO. 5 WATER BY-PASS HOSE *8 ENGINE OIL LEVEL DIPSTICK GUIDE
*9 INTAKE MANIFOLD WITH INTERCOOLER ASSEMBLY *10 WATER CONTROL VALVE
*11 FRONT WATER BY-PASS JOINT *12 WATER OUTLET GASKET
*13 ENGINE OIL LEVEL DIPSTICK *14 GASKET
*15 O-RING - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) N*m (kgf*cm, ft.*lbf): Specified torque
• Non-reusable part - -

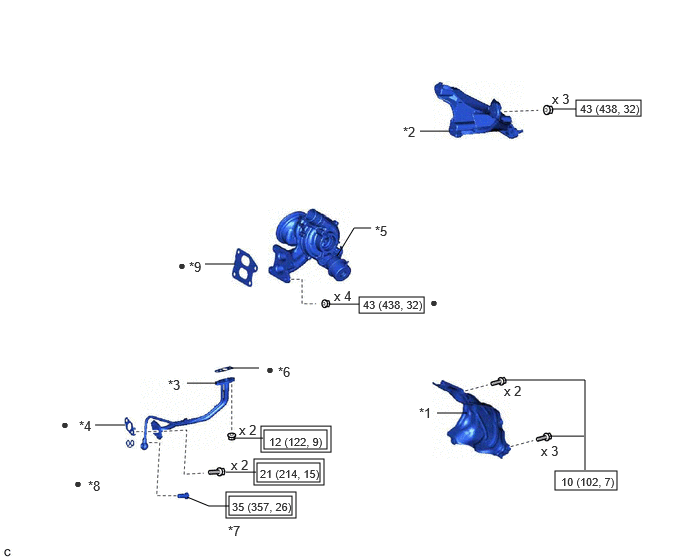

Fig 2: Cylinder Head Gasket Replacement Components With Torque Specifications (2 Of 5)
GTY1106731Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 NO. 1 TURBO INSULATOR *2 MANIFOLD STAY
*3 NO. 1 TURBO OIL PIPE *4 NO. 1 TURBO OIL OUTLET GASKET
*5 TURBOCHARGER SUB-ASSEMBLY *6 TURBO OIL INLET GASKET
*7 OIL PIPE UNION BOLT *8 GASKET
*9 EXHAUST MANIFOLD TO HEAD GASKET - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) N*m (kgf*cm, ft.*lbf): Specified torque
• Non-reusable part - -

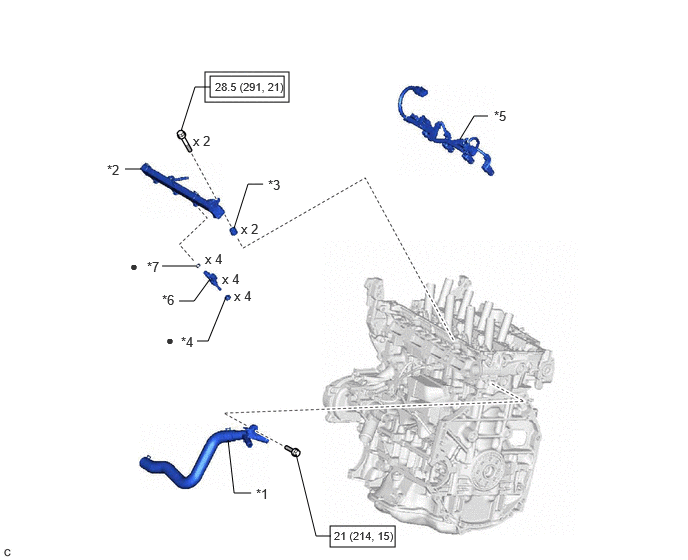

Fig 3: Cylinder Head Gasket Replacement Components With Torque Specifications (3 Of 5)
GTY1108120Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 NO. 2 WATER BY-PASS PIPE *2 FUEL DELIVERY PIPE
*3 FUEL DELIVERY SPACER *4 INJECTOR VIBRATION INSULATOR
*5 NO. 5 ENGINE WIRE *6 PORT FUEL INJECTOR ASSEMBLY
*7 O-RING - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) N*m (kgf*cm, ft.*lbf): Specified torque
• Non-reusable part - -

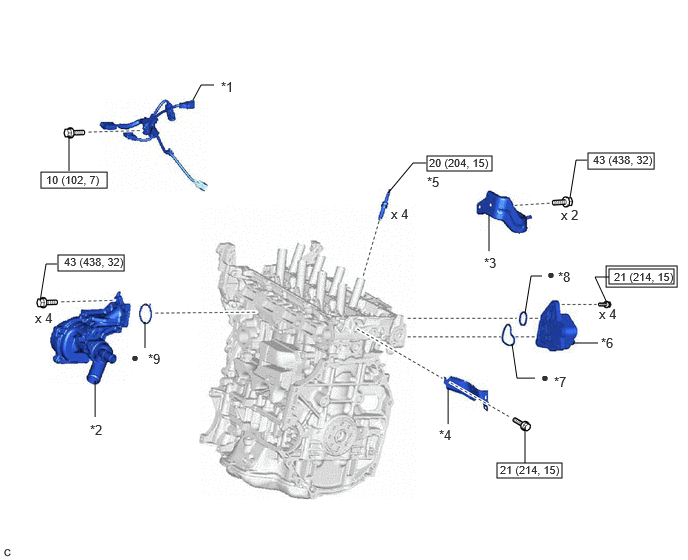

Fig 4: Cylinder Head Gasket Replacement Components With Torque Specifications (4 Of 5)
GTY1108562Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 WIRE HARNESS *2 WATER INLET HOUSING
*3 NO. 2 MANIFOLD STAY *4 HEATER WATER HOSE BRACKET
*5 SPARK PLUG *6 OIL COOLER ASSEMBLY
*7 OIL COOLER GASKET *8 OIL COOLER PIPE GASKET
*9 GASKET - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) N*m (kgf*cm, ft.*lbf): Specified torque
• Non-reusable part - -

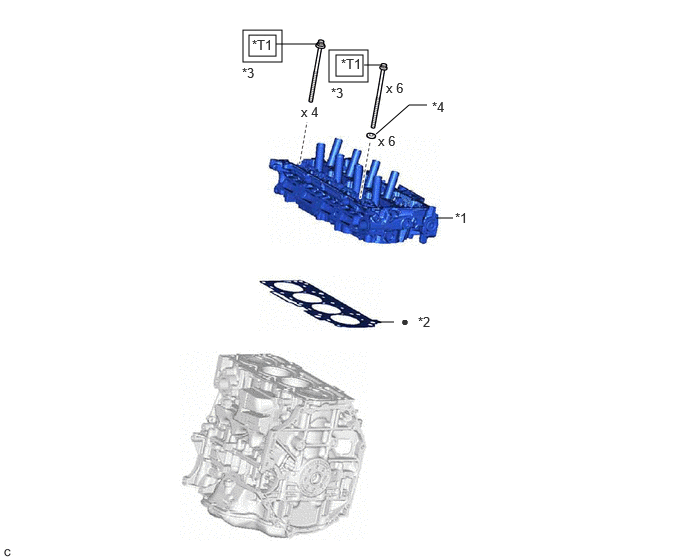

Fig 5: Cylinder Head Gasket Replacement Components (5 Of 5)
GTY1106380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CYLINDER HEAD SUB-ASSEMBLY *2 CYLINDER HEAD GASKET
*3 CYLINDER HEAD SET BOLT *4 PLATE WASHER
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) • Non-reusable part
*T1 1st: 90 (918, 66)
2nd: Turn 90°
3rd: Turn 90°		 - -
