Components [10/2021 - ]

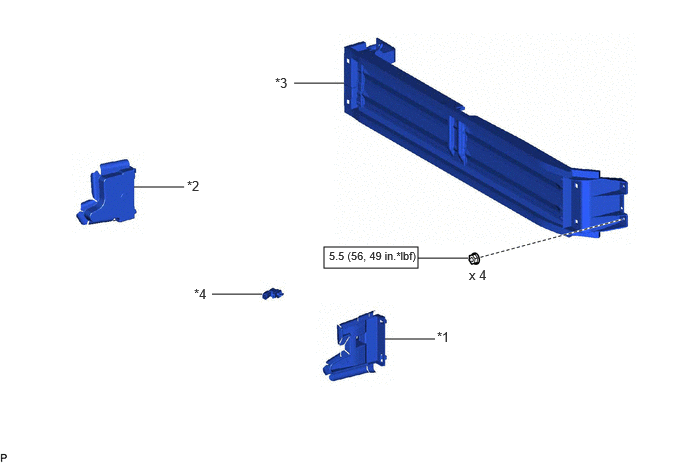

Fig 1: Grille Shutter Replacement Components With Torque Specifications [10/2021 - ] (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT RADIATOR SIDE AIR GUIDE PLATE LH	*2	FRONT RADIATOR SIDE AIR GUIDE PLATE RH
*3	RADIATOR SHUTTER SUB-ASSEMBLY	*4	THERMISTOR ASSEMBLY
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

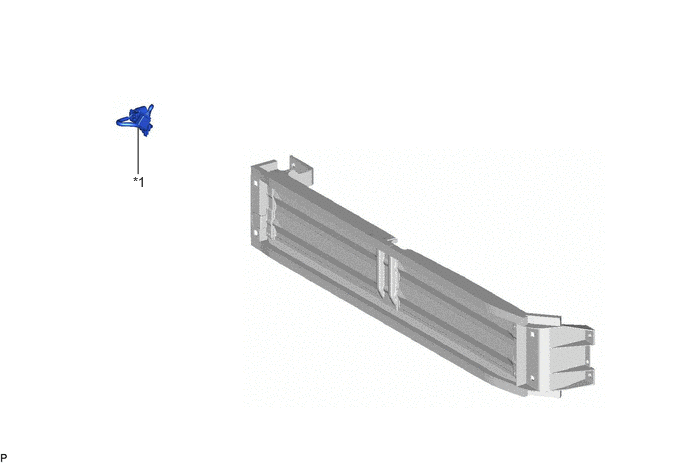

Fig 2: Grille Shutter Replacement Components [10/2021 - ] (2 Of 2)

Callout	Description	Callout	Description
*1	NO. 5 ENGINE ROOM WIRE	-	-
