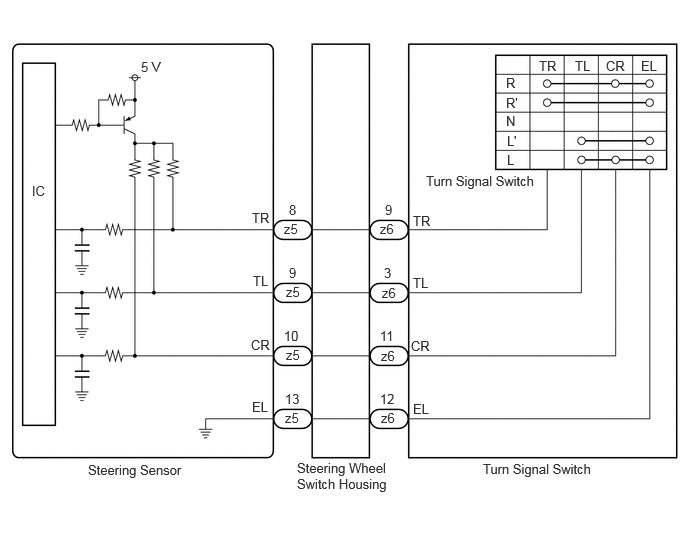

Turn Signal Switch Circuit [12/2019 - ]: Wiring Diagram

GTY900995

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
