Installation [10/2022 - ]: Procedure
WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
- INSTALL TIMING CHAIN CASE OIL SEAL

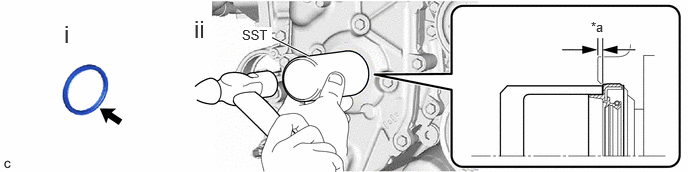

*a 0 to 2 mm - - - Apply MP grease to the lip of a new timing chain case oil seal.NOTE:
- Keep the lip free from foreign matter.
- Do not allow MP grease to contact the dust seal.
- Make sure there is no oil on the outer surface.
- Using SST and a hammer, tap in the timing chain case oil seal.
- SST: 09223-00010
Standard Depth
0 to 2 mm (0 to 0.0787 in.) (From the edge of the No. 2 timing chain cover assembly)
NOTE:Do not tap in the timing chain case oil seal at an angle.
- Apply MP grease to the lip of a new timing chain case oil seal.
- INSTALL CRANKSHAFT PULLEY ASSEMBLY
Refer to PROCEDURE - Step 42
- INSTALL V-RIBBED BELT
Refer to PROCEDURE - Step 1
- INSTALL ENGINE ASSEMBLY WITH TRANSAXLE
Refer to INSTALLATION [10/2022 - 11/2023] , or refer to INSTALLATION [11/2023 - ]
