Removal [06/2021 - 09/2022]: Procedure

Refer to REMOVAL [03/2019 - 09/2022]

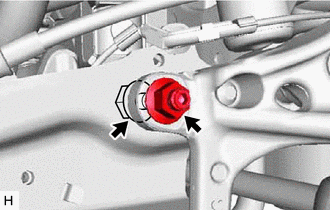

1. Remove the nut and separate the No. 3 parking brake cable assembly from the rear trailing arm assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disengage the 2 clamps.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the bolt and separate the skid control sensor wire from the rear trailing arm assembly.

See step  4

1. Using a transmission jack and a wooden block, support the rear No. 2 suspension arm assembly.
   NOTE:

   • When jacking up the rear No. 2 suspension arm assembly, be sure to jack it up slowly.
   • Make sure to perform this operation with the vehicle kept as low as possible.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Wooden Block
   *b	Transmission Jack

2. w/o Stabilizer Bar:
   1. Remove the cap.
   2. Remove the bolt and nut from the rear axle carrier sub-assembly and rear trailing arm assembly.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Remove the 2 bolts and separate the rear trailing arm assembly from the rear axle carrier sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

4. Remove the 4 bolts and rear trailing arm assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Secure the rear trailing arm assembly in a vise using aluminum plates.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   Do not overtighten the vise.

2. Disengage the 4 claws and remove the rear suspension arm cover.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the bolt, nut and rear suspension arm bracket from the rear trailing arm assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
