Removal [09/2022 - 11/2022]: Procedure

  1. REMOVE REAR SUSPENSION MEMBER SUB-ASSEMBLY

    for 2WD: Refer to REMOVAL [09/2022 - 11/2022]

    for HV Model AWD: Refer to REMOVAL [09/2022 - ]

    for Gasoline Model AWD: Refer to REMOVAL [09/2022 - ]

  2. REMOVE REAR UPPER CONTROL ARM ASSEMBLY LH (for 2WD)
    1. Remove the bolt, nut and rear upper control arm assembly LH from the rear suspension member sub-assembly.
      NOTE:

      Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.

      GTY898444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE REAR UPPER CONTROL ARM ASSEMBLY RH (for 2WD)

    HINT:

    Perform the same procedure as for the LH side.

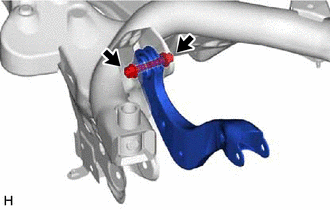

  4. REMOVE REAR UPPER CONTROL ARM ASSEMBLY LH (for Gasoline Model AWD)
    1. Remove the bolt, nut and rear upper control arm assembly LH from the rear suspension member sub-assembly.
      NOTE:

      Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.

      GTY1115988Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE REAR UPPER CONTROL ARM ASSEMBLY RH (for Gasoline Model AWD)

    HINT:

    Perform the same procedure as for the LH side.

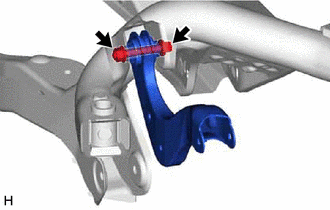

  6. REMOVE REAR UPPER CONTROL ARM ASSEMBLY LH (for HV Model AWD)
    1. Remove the bolt, nut and rear upper control arm assembly LH from the rear suspension member sub-assembly.
      NOTE:

      Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.

      GTY805307Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE REAR UPPER CONTROL ARM ASSEMBLY RH (for HV Model AWD)

    HINT:

    Perform the same procedure as for the LH side.
