Components [01/2019 - 06/2021]
Fig 1: Rear Shock Absorber Replacement Components With Torque Specifications [01/2019 - 06/2021] (1 Of 3)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/ Cover | *B | for RH Side |
| *C | for LH Side | *D | for Type A |
| *E | for Type B | - | - |
| *1 | REAR FLOOR SIDE MEMBER COVER LH | *2 | REAR FLOOR SIDE MEMBER COVER RH |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

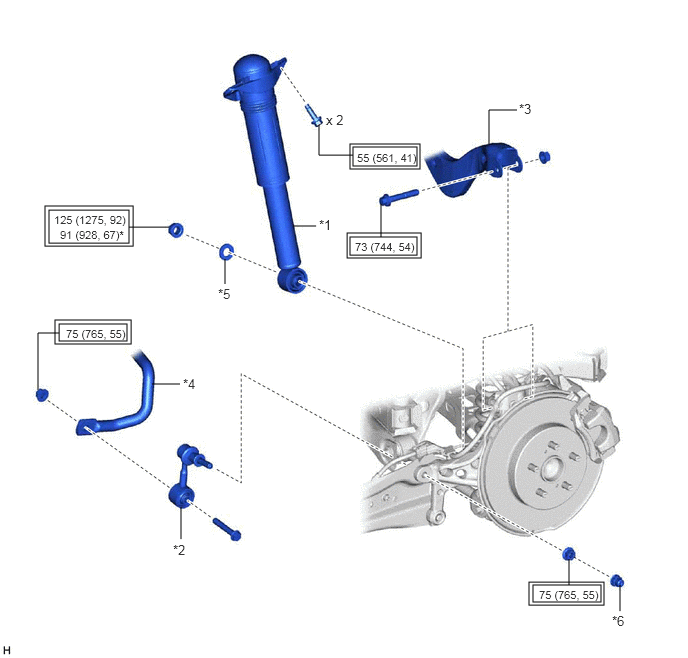

Fig 2: Rear Shock Absorber Replacement Components With Torque Specifications [01/2019 - 06/2021] (2 Of 3)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | REAR SHOCK ABSORBER ASSEMBLY | *2 | REAR STABILIZER LINK ASSEMBLY |
| *3 | REAR UPPER CONTROL ARM ASSEMBLY | *4 | REAR STABILIZER BAR |
| *5 | PLATE WASHER | *6 | CAP |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | * | For use with a ball joint lock nut wrench |

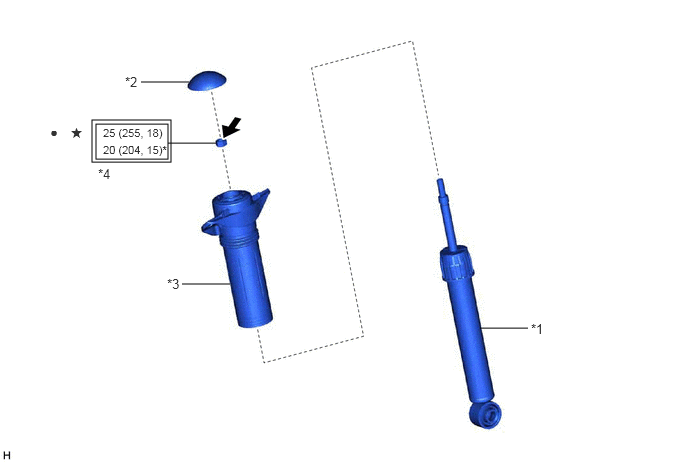

Fig 3: Rear Shock Absorber Replacement Components With Torque Specifications [01/2019 - 06/2021] (3 Of 3)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | REAR SHOCK ABSORBER ASSEMBLY | *2 | REAR SHOCK ABSORBER CAP |
| *3 | REAR SUSPENSION SUPPORT ASSEMBLY | *4 | REAR SUPPORT TO REAR SHOCK ABSORBER NUT |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | * | For use with SST | |
| • | Non-reusable part | Adhesive 1324 | |
| * | Precoated part | - | - |
