Components [01/2019 - 09/2022]
Fig 1: Brake Booster (For HV Model) Replacement Components With Torque Specifications [01/2019 - 09/2022] (1 Of 3)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | NO. 1 HEATER AIR DUCT SPLASH SHIELD SEAL | *2 | OUTER COWL TOP PANEL SUB-ASSEMBLY |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque |
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | - | - |

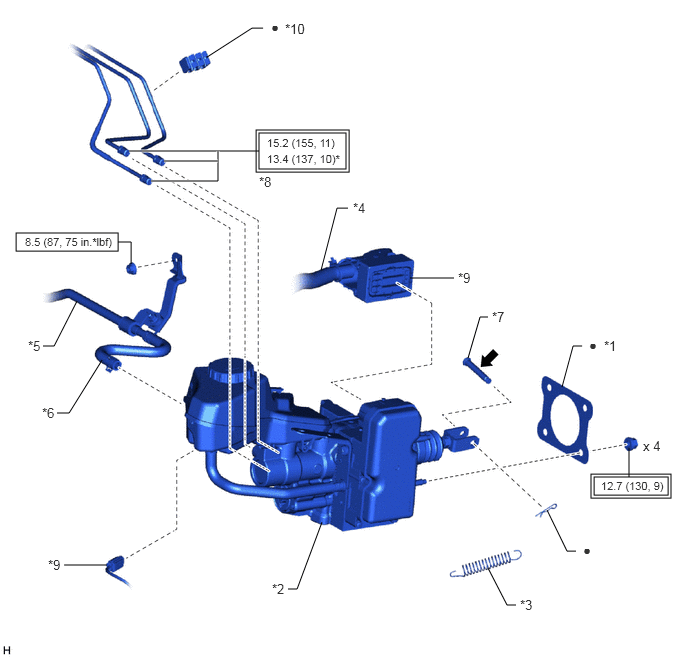

Fig 3: Brake Booster (For HV Model) Replacement Components With Torque Specifications [01/2019 - 09/2022] (3 Of 3)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | BRAKE BOOSTER GASKET | *2 | BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY |
| *3 | BRAKE PEDAL RETURN SPRING | *4 | ENGINE ROOM MAIN WIRE |
| *5 | NO. 1 BRAKE ACTUATOR TUBE | *6 | NO. 2 BRAKE ACTUATOR HOSE |
| *7 | PUSH ROD PIN | *8 | BRAKE LINE |
| *9 | CONNECTOR | *10 | NO. 2 BRAKE TUBE CLAMP |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque | ||
| * | For use with a union nut wrench | • | Non-reusable part |
| Lithium soap base glycol grease | - | - |
