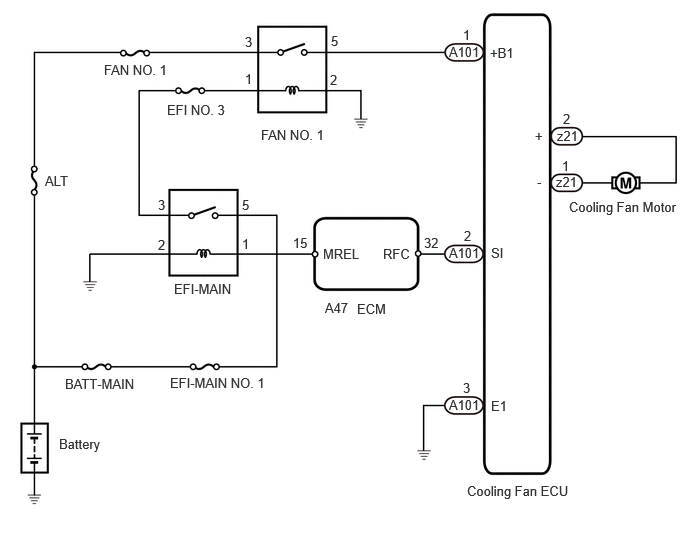

Cooling Fan Circuit [09/2022 - ]: Wiring Diagram

GTY1109150

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
