Components [09/2024 - ]

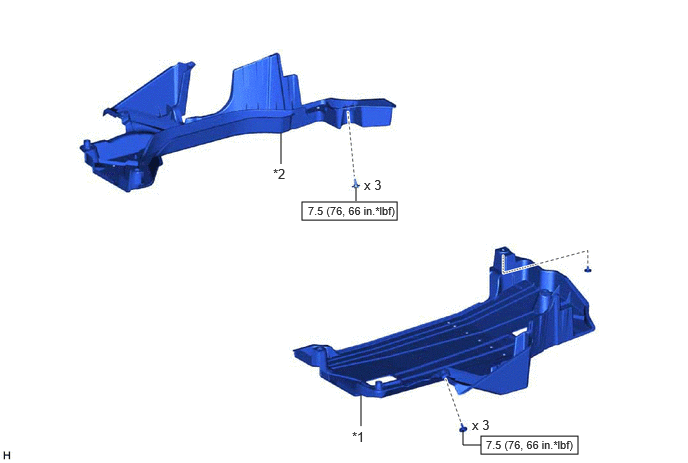

Fig 1: Rear Stabilizer Bar (For Hatchback Except Gasoline Model AWD) Replacement Components With Torque Specifications (1 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | REAR FLOOR SIDE MEMBER COVER LH | *2 | REAR FLOOR SIDE MEMBER COVER RH |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

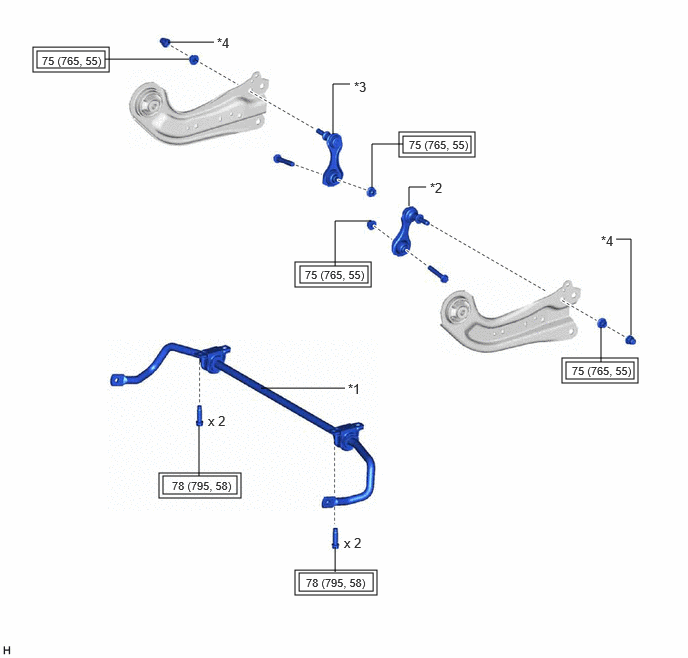

Fig 2: Rear Stabilizer Bar (For Hatchback Except Gasoline Model AWD) Replacement Components With Torque Specifications (2 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | REAR STABILIZER BAR | *2 | REAR STABILIZER LINK ASSEMBLY LH |
| *3 | REAR STABILIZER LINK ASSEMBLY RH | *4 | CAP |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |
