Components [11/2022 - 09/2024]
Fig 1: Rear Trailing Arm (W/O Electric Parking Brake) Replacement Components With Torque Specifications [11/2022 - 09/2024] (1 Of 3)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for RH Side | *B | for LH Side |
| *1 | FRONT FLOOR COVER RH | *2 | FRONT FLOOR COVER LH |
| *3 | REAR FLOOR SIDE MEMBER COVER RH | *4 | REAR FLOOR SIDE MEMBER COVER LH |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

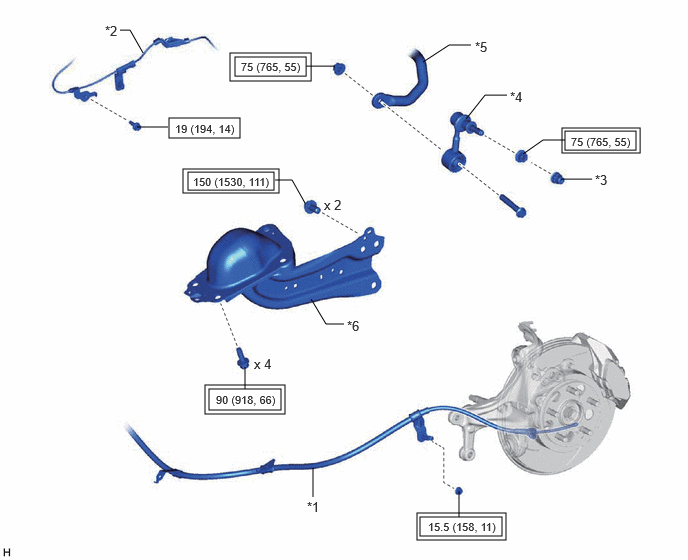

Fig 2: Rear Trailing Arm (W/O Electric Parking Brake) Replacement Components With Torque Specifications [11/2022 - 09/2024] (2 Of 3)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | NO. 3 PARKING BRAKE CABLE ASSEMBLY | *2 | REAR SPEED SENSOR |
| *3 | CAP | *4 | REAR STABILIZER LINK ASSEMBLY |
| *5 | REAR STABILIZER BAR | *6 | REAR TRAILING ARM ASSEMBLY |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque |

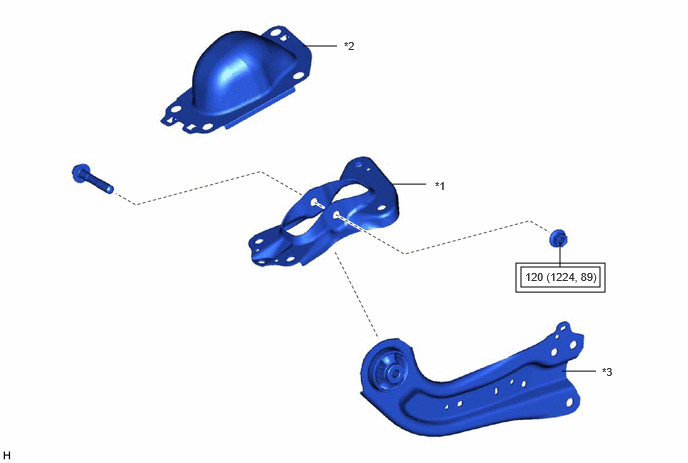

Fig 3: Rear Trailing Arm (W/O Electric Parking Brake) Replacement Components With Torque Specifications [11/2022 - 09/2024] (3 Of 3)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | REAR SUSPENSION ARM BRACKET | *2 | REAR NO. 1 SUSPENSION SUPPORT COVER |
| *3 | REAR TRAILING ARM ASSEMBLY | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |
