Components [09/2022 - 09/2024]
Fig 1: Rear Stabilizer Bar (For Hatchback) Replacement Components With Torque Specifications [09/2022 - 09/2024] (1 Of 4)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for 2WD with Cover | - | - |
| *1 | REAR FLOOR SIDE MEMBER COVER LH | *2 | REAR FLOOR SIDE MEMBER COVER RH |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

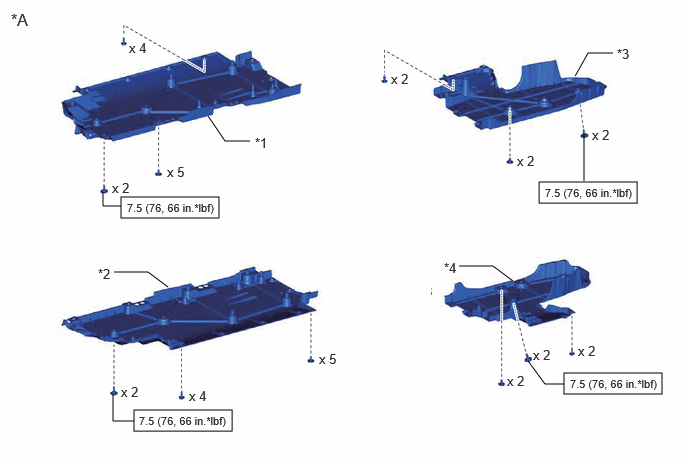

Fig 2: Rear Stabilizer Bar (For Hatchback) Replacement Components With Torque Specifications [09/2022 - 09/2024] (2 Of 4)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for AWD | - | - |
| *1 | FRONT FLOOR COVER RH | *2 | FRONT FLOOR COVER LH |
| *3 | REAR FLOOR SIDE MEMBER COVER RH | *4 | REAR FLOOR SIDE MEMBER COVER LH |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

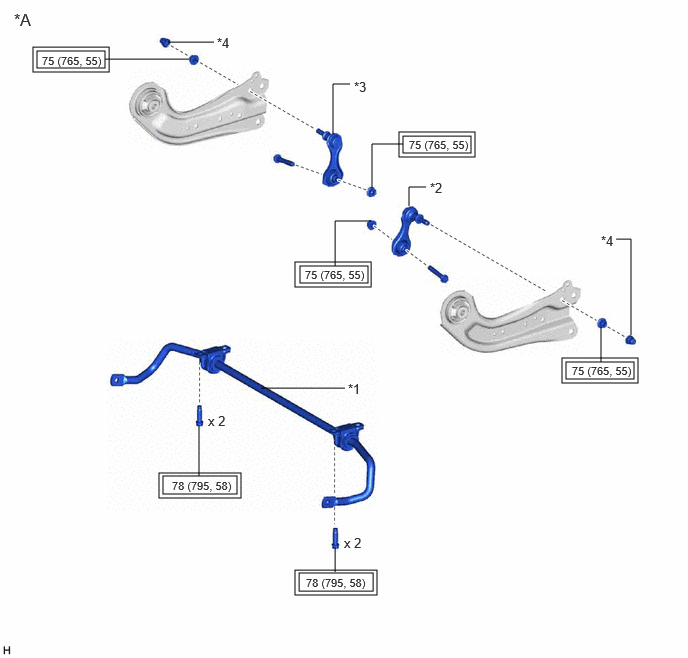

Fig 3: Rear Stabilizer Bar (For Hatchback) Replacement Components With Torque Specifications [09/2022 - 09/2024] (3 Of 4)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for 2WD | - | - |
| *1 | REAR STABILIZER BAR | *2 | REAR STABILIZER LINK ASSEMBLY LH |
| *3 | REAR STABILIZER LINK ASSEMBLY RH | *4 | CAP |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |

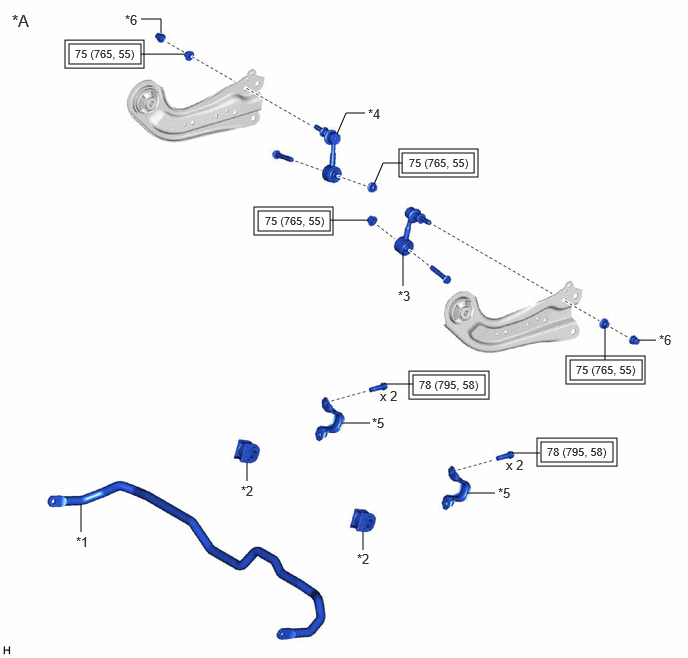

Fig 4: Rear Stabilizer Bar (For Hatchback) Replacement Components With Torque Specifications [09/2022 - 09/2024] (4 Of 4)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for AWD | - | - |
| *1 | REAR STABILIZER BAR | *2 | REAR STABILIZER BUSHING |
| *3 | REAR STABILIZER LINK ASSEMBLY LH | *4 | REAR STABILIZER LINK ASSEMBLY RH |
| *5 | REAR NO. 1 STABILIZER BAR BRACKET | *6 | CAP |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |
