Components [09/2022 - ]

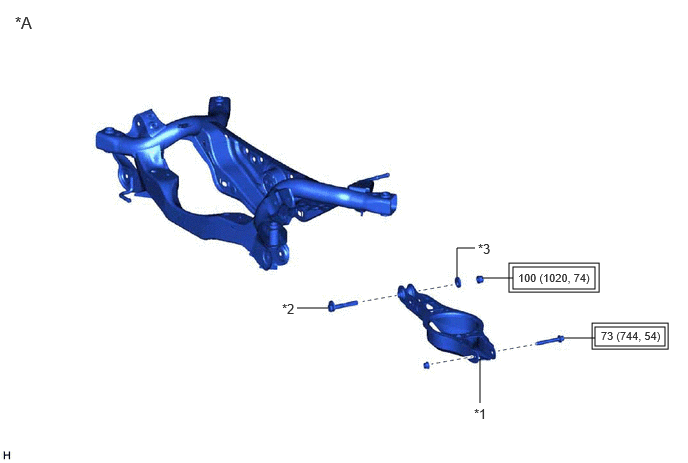

Fig 1: Rear Lower Arm (For HV Model AWD) Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for LH Side	-	-
*1	REAR NO. 2 SUSPENSION ARM ASSEMBLY LH	*2	REAR SUSPENSION TOE ADJUST CAM SUB-ASSEMBLY
*3	NO. 2 CAMBER ADJUST CAM	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	-	-

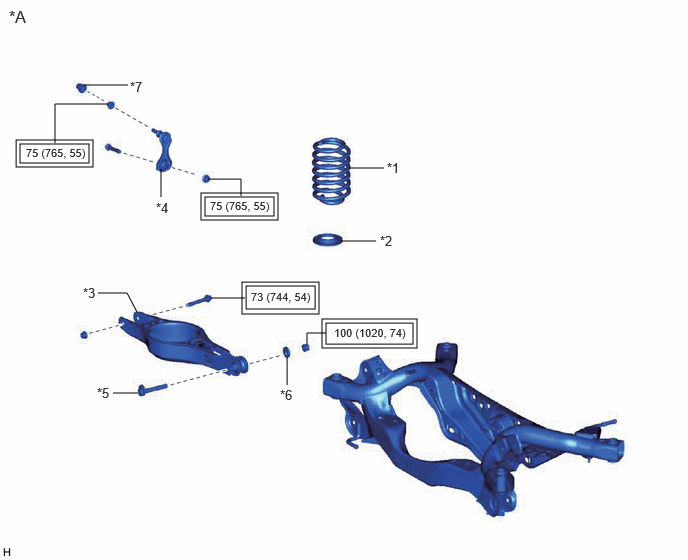

Fig 2: Rear Lower Arm (For HV Model AWD) Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for RH Side	-	-
*1	REAR COIL SPRING RH	*2	REAR LOWER COIL SPRING INSULATOR RH
*3	REAR NO. 2 SUSPENSION ARM ASSEMBLY RH	*4	REAR STABILIZER LINK ASSEMBLY RH
*5	REAR SUSPENSION TOE ADJUST CAM SUB-ASSEMBLY	*6	NO. 2 CAMBER ADJUST CAM
*7	CAP	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	-	-

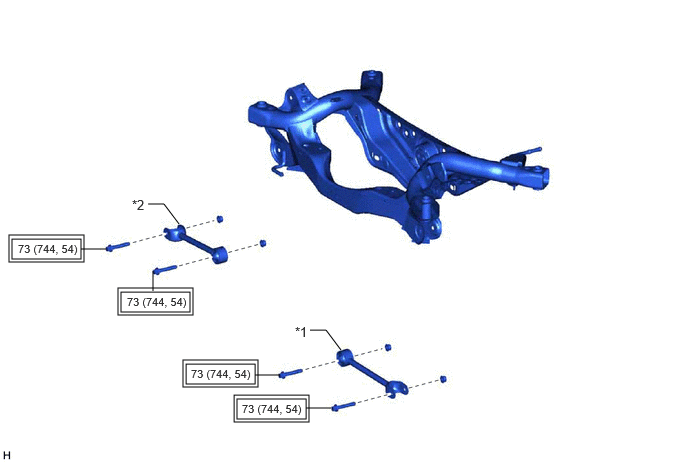

Fig 3: Rear Lower Arm (For HV Model AWD) Replacement Components With Torque Specifications (3 Of 3)

Callout	Description	Callout	Description
*1	REAR NO. 1 SUSPENSION ARM ASSEMBLY LH	*2	REAR NO. 1 SUSPENSION ARM ASSEMBLY RH
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	-	-
