Removal [06/2018 - 01/2019]: Procedure

  1. REMOVE REAR WHEEL

    Refer to PROCEDURE - Step 1

  2. REMOVE REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH (w/ Height Control Sensor)
    1. for LH Side:

      Refer to REMOVAL [06/2018 - 09/2022]

  3. REMOVE REAR FLOOR SIDE MEMBER COVER LH (w/ Cover)
    1. for LH Side:

      See step  2

  4. REMOVE REAR FLOOR SIDE MEMBER COVER RH (w/ Cover)
    1. for RH Side:

      See step  3

  5. REMOVE REAR STABILIZER LINK ASSEMBLY

    See step  4

  6. REMOVE REAR COIL SPRING

    Refer to PROCEDURE - Step 6

  7. REMOVE REAR LOWER COIL SPRING INSULATOR

    Refer to PROCEDURE - Step 8

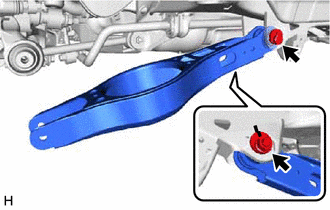

  8. REMOVE REAR NO. 2 SUSPENSION ARM ASSEMBLY
    1. Remove the nut, No. 2 camber adjust cam, rear suspension toe adjust cam sub-assembly and rear No. 2 suspension arm assembly.
      NOTE:

      Hold the rear suspension toe adjust cam sub-assembly while rotating the nut.

      GTY898450Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

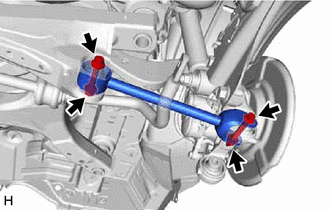

  9. REMOVE REAR NO. 1 SUSPENSION ARM ASSEMBLY
    1. Remove the 2 bolts, 2 nuts and rear No. 1 suspension arm assembly from the rear axle carrier sub-assembly and rear suspension member sub-assembly.
      NOTE:

      Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.

      GTY898454Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
