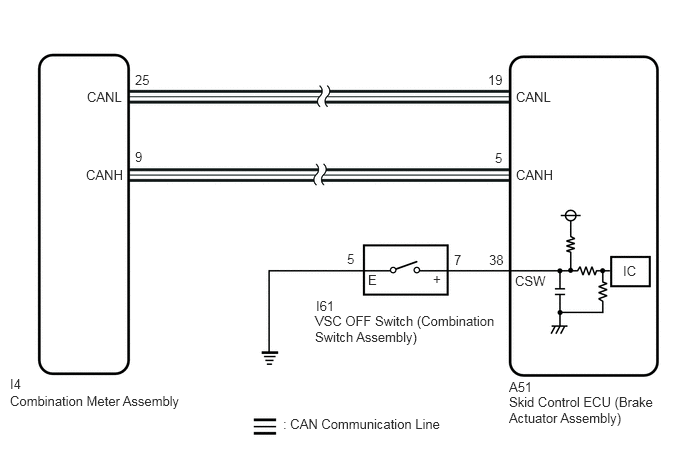

VSC OFF Switch Circuit [09/2022 - 11/2022]: Wiring Diagram

WARNING: This page is about a different car, the 2023 Toyota GR Corolla and 2023 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
GTY865734Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
