Components [06/2018 - 01/2019]
Fig 1: Rear Axle Carrier (For 2WD With Electric Parking Brake System) Replacement Components With Torque Specifications [06/2018 - 01/2019] (1 Of 3)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/ Cover | *B | for RH Side |
| *C | for LH Side | - | - |
| *1 | REAR FLOOR SIDE MEMBER COVER LH | *2 | REAR FLOOR SIDE MEMBER COVER RH |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

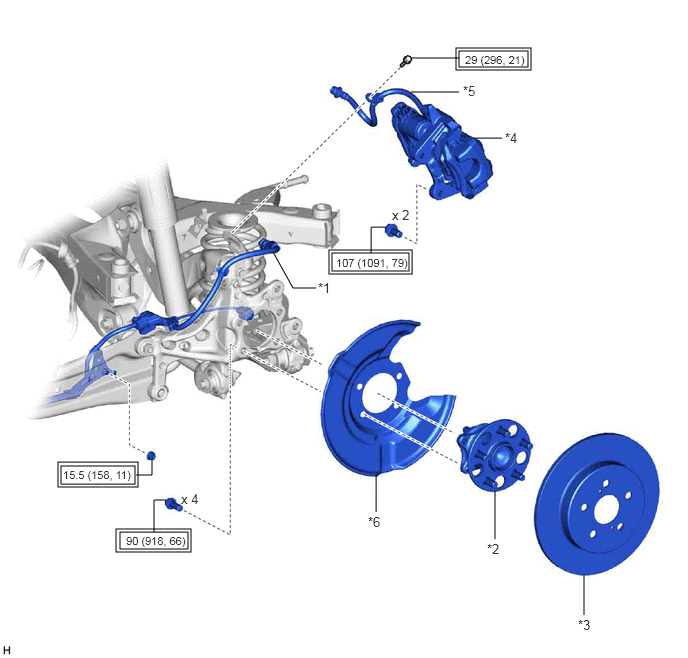

Fig 2: Rear Axle Carrier (For 2WD With Electric Parking Brake System) Replacement Components With Torque Specifications [06/2018 - 01/2019] (2 Of 3)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | NO. 2 PARKING BRAKE WIRE ASSEMBLY | *2 | REAR AXLE HUB AND BEARING ASSEMBLY |
| *3 | REAR DISC | *4 | REAR DISC BRAKE CALIPER ASSEMBLY |
| *5 | REAR FLEXIBLE HOSE | *6 | REAR DISC BRAKE DUST COVER SUB-ASSEMBLY |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |

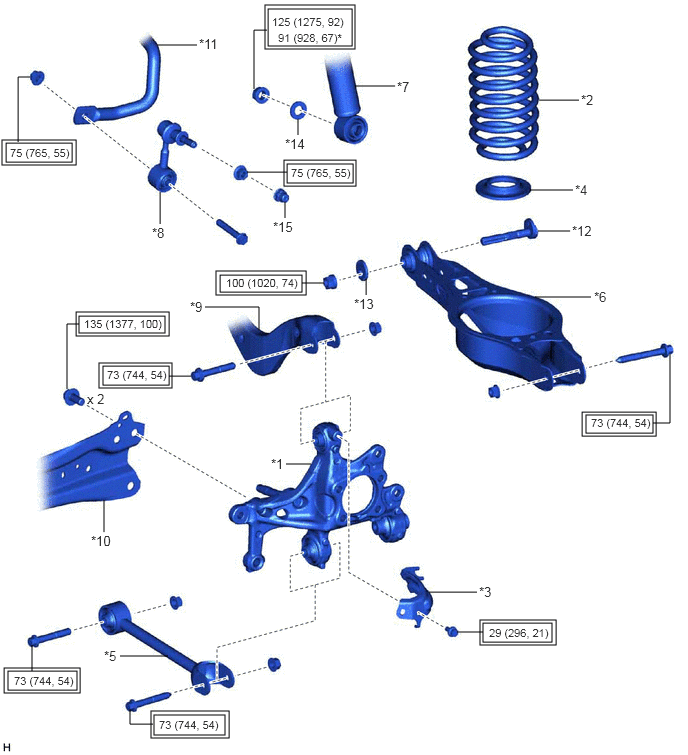

Fig 3: Rear Axle Carrier (For 2WD With Electric Parking Brake System) Replacement Components With Torque Specifications [06/2018 - 01/2019] (3 Of 3)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | REAR AXLE CARRIER SUB-ASSEMBLY | *2 | REAR COIL SPRING |
| *3 | REAR FLEXIBLE HOSE BRACKET | *4 | REAR LOWER COIL SPRING INSULATOR |
| *5 | REAR NO. 1 SUSPENSION ARM ASSEMBLY | *6 | REAR NO. 2 SUSPENSION ARM ASSEMBLY |
| *7 | REAR SHOCK ABSORBER ASSEMBLY | *8 | REAR STABILIZER LINK ASSEMBLY |
| *9 | REAR UPPER CONTROL ARM ASSEMBLY | *10 | REAR TRAILING ARM ASSEMBLY |
| *11 | REAR STABILIZER BAR | *12 | REAR SUSPENSION TOE ADJUST CAM SUB-ASSEMBLY |
| *13 | NO. 2 CAMBER ADJUST CAM | *14 | PLATE WASHER |
| *15 | CAP | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | * | For use with a ball joint lock nut wrench |
