Components [06/2018 - ]

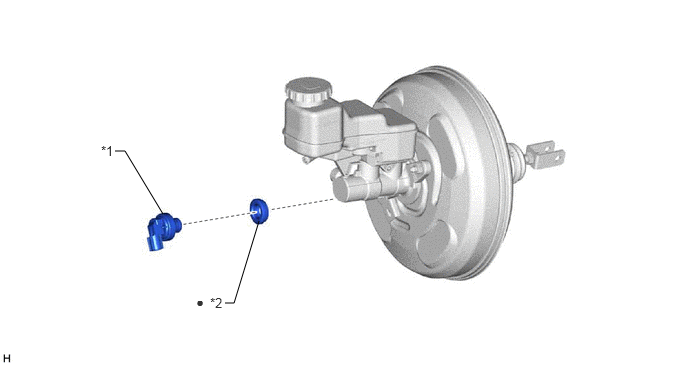

Fig 1: Vacuum Warning Switch (For Gasoline Model) Replacement Components
GTY896625Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 VACUUM WARNING SWITCH ASSEMBLY *2 VACUUM WARNING SWITCH GROMMET
• Non-reusable part - -
