Components [03/2019 - 11/2022]

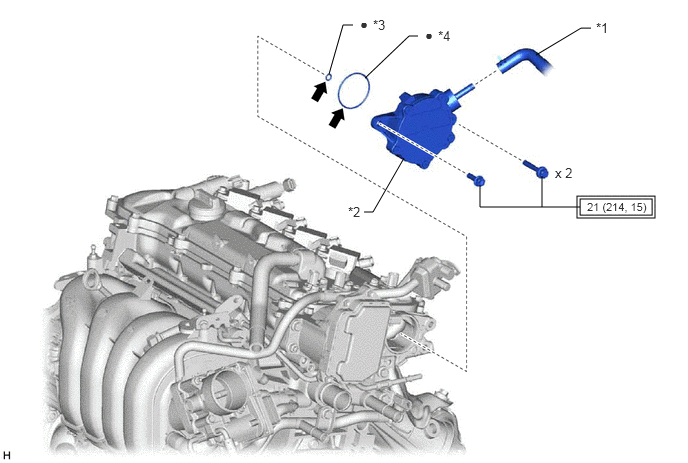

Fig 1: Vacuum Pump (For TMMMS Made 2ZR-FAE) Replacement Components With Torque Specifications [03/2019 - 11/2022]
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | CHECK VALVE TO CONNECTOR TUBE HOSE | *2 | VACUUM PUMP ASSEMBLY |
| *3 | NO. 1 O-RING | *4 | NO. 2 O-RING |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | • | Non-reusable part | |
| Engine Oil | - | - |
