Components [09/2024 - ]

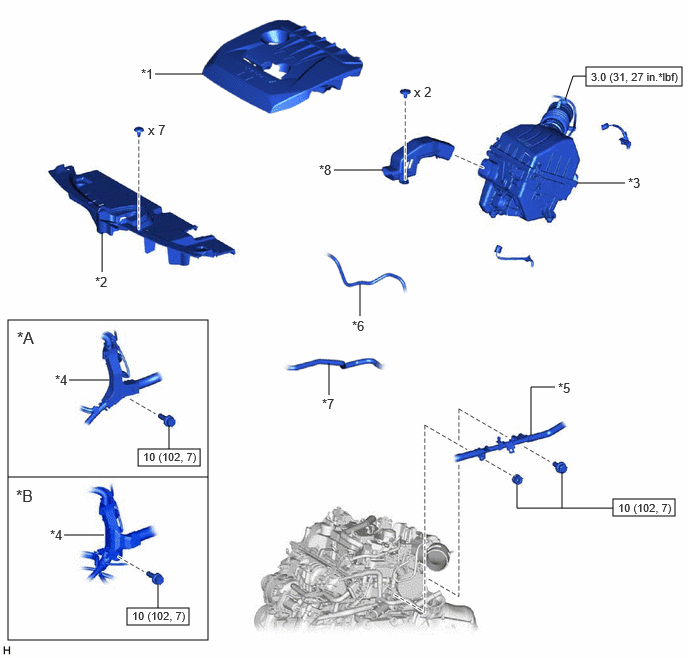

Fig 1: Vacuum Pump (For G16E-GTS) Replacement Components With Torque Specifications [09/2024 - ] (1 Of 3)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for Manual Transaxle | *B | for Automatic Transaxle |
| *1 | NO. 1 ENGINE COVER SUB-ASSEMBLY | *2 | RADIATOR SUPPORT OPENING COVER |
| *3 | AIR CLEANER WITH AIR CLEANER HOSE | *4 | ENGINE WIRE |
| *5 | NO. 1 WATER BY-PASS PIPE | *6 | FUEL TUBE SUB-ASSEMBLY |
| *7 | NO. 1 FUEL VAPOR FEED HOSE | *8 | INLET NO. 1 AIR CLEANER |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

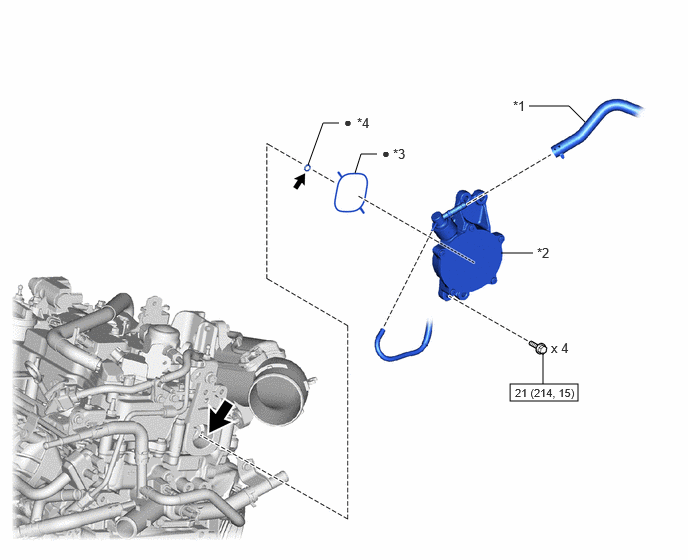

Fig 2: Vacuum Pump (For G16E-GTS) Replacement Components With Torque Specifications [09/2024 - ] (2 Of 3)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | CHECK VALVE TO CONNECTOR TUBE HOSE | *2 | VACUUM PUMP ASSEMBLY |
| *3 | NO. 2 VACUUM PUMP O-RING | *4 | NO. 3 VACUUM PUMP O-RING |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| Engine Oil | - | - |

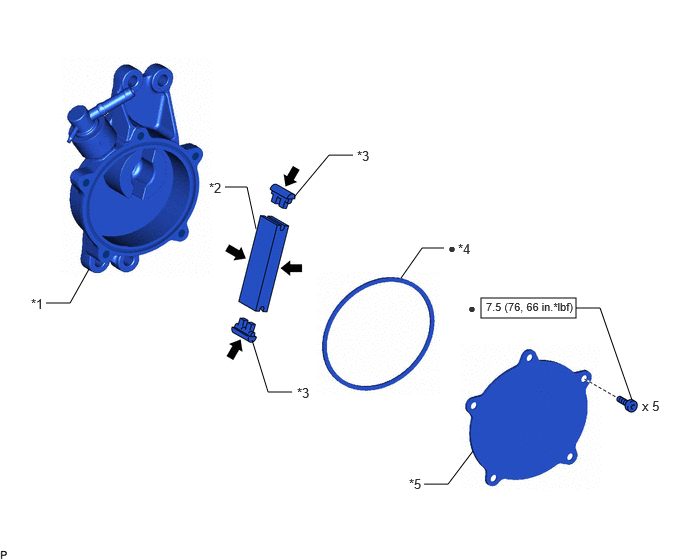

Fig 3: Vacuum Pump (For G16E-GTS) Replacement Components With Torque Specifications [09/2024 - ] (3 Of 3)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | VACUUM PUMP HOUSING | *2 | VACUUM PUMP VANE |
| *3 | VACUUM PUMP VANE CAP | *4 | NO. 1 VACUUM PUMP O-RING |
| *5 | END COVER | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| Engine Oil | - | - |
