Components [06/2018 - 01/2019]

Fig 1: Brake Vacuum Hose (For Gasoline Model) Replacement Components With Torque Specifications [06/2018 - 01/2019] (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	NO. 1 HEATER AIR DUCT SPLASH SHIELD SEAL	*2	OUTER COWL TOP PANEL SUB-ASSEMBLY
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)		N.m (kgf/cm, ft.lbf): Specified torque

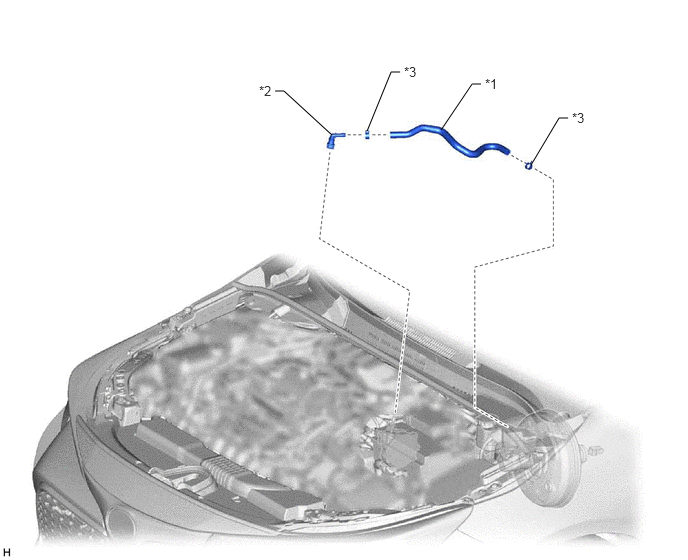

Fig 2: Brake Vacuum Hose (For Gasoline Model) Replacement Components [06/2018 - 01/2019] (2 Of 2)

Callout	Description	Callout	Description
*1	CHECK VALVE TO CONNECTOR TUBE HOSE	*2	NO. 1 VACUUM HOSE CONNECTOR
*3	CLIP	-	-
