Components [09/2022 - ]
Fig 1: Brake Booster (For HV Model) Replacement Components With Torque Specifications [09/2022 - ] (1 Of 4)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | NO. 1 HEATER AIR DUCT SPLASH SHIELD SEAL | *2 | OUTER COWL TOP PANEL SUB-ASSEMBLY |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque |
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | - | - |

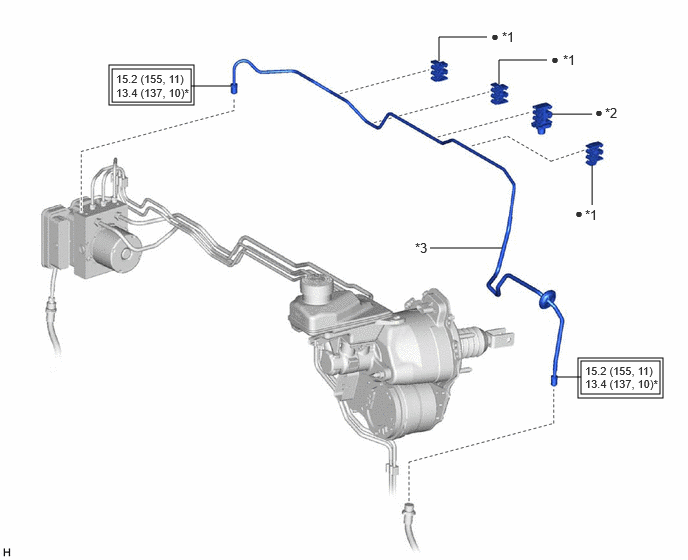

Fig 3: Brake Booster (For HV Model) Replacement Components With Torque Specifications [09/2022 - ] (3 Of 4)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | NO. 3 BRAKE TUBE CLAMP | *2 | NO. 4 BRAKE TUBE CLAMP |
| *3 | FRONT NO. 5 BRAKE TUBE | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | * | For use with a union nut wrench | |
| • | Non-reusable part | - | - |

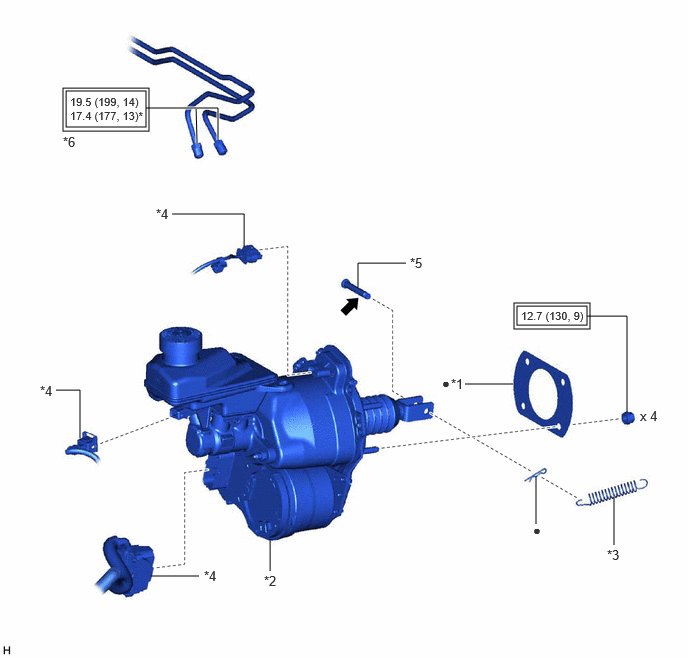

Fig 4: Brake Booster (For HV Model) Replacement Components With Torque Specifications [09/2022 - ] (4 Of 4)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | BRAKE BOOSTER GASKET | *2 | BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY |
| *3 | BRAKE PEDAL RETURN SPRING | *4 | ENGINE ROOM MAIN WIRE |
| *5 | PUSH ROD PIN | *6 | BRAKE LINE |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | * | For use with a union nut wrench | |
| • | Non-reusable part | Lithium soap base glycol grease |
