Components [09/2022 - ]

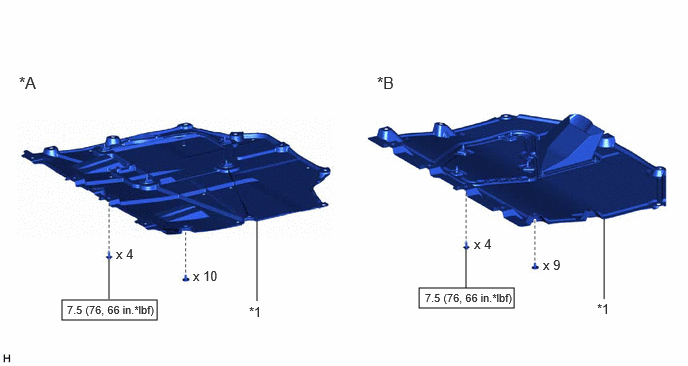

Fig 1: Brake Booster (For Gasoline Model) Replacement Components With Torque Specifications [09/2022 - ] (1 Of 6)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for M20A-FKS | *B | for G16E-GTS |
| *1 | NO. 1 ENGINE UNDER COVER ASSEMBLY | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

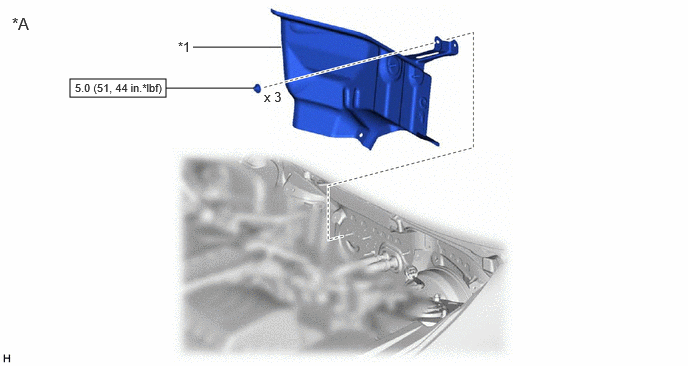

Fig 2: Brake Booster (For Gasoline Model) Replacement Components With Torque Specifications [09/2022 - ] (2 Of 6)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for M20A-FKS | - | - |
| *1 | DASH PANEL HEAT INSULATOR | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

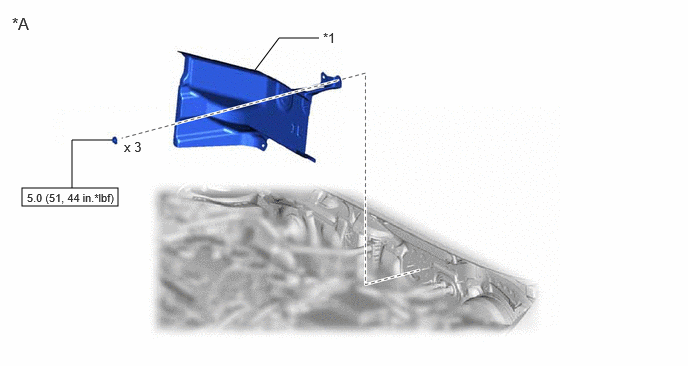

Fig 3: Brake Booster (For Gasoline Model) Replacement Components With Torque Specifications [09/2022 - ] (3 Of 6)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for G16E-GTS | - | - |
| *1 | DASH PANEL HEAT INSULATOR | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | - | - |

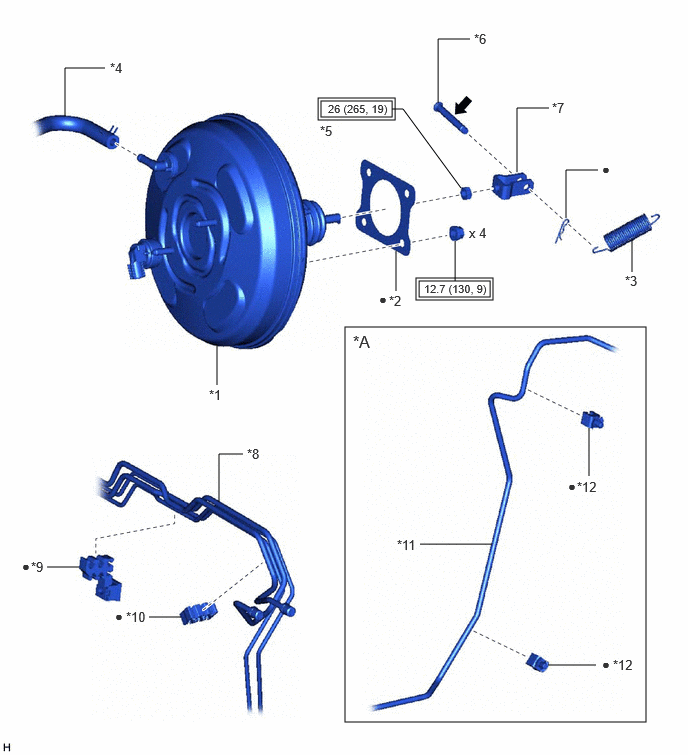

Fig 5: Brake Booster (For Gasoline Model) Replacement Components With Torque Specifications [09/2022 - ] (5 Of 6)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for Manual Transaxle | - | - |
| *1 | BRAKE BOOSTER ASSEMBLY | *2 | BRAKE BOOSTER GASKET |
| *3 | BRAKE PEDAL RETURN SPRING | *4 | CHECK VALVE TO CONNECTOR TUBE HOSE |
| *5 | LOCK NUT | *6 | PUSH ROD PIN |
| *7 | BRAKE MASTER CYLINDER PUSH ROD CLEVIS | *8 | BRAKE LINE |
| *9 | NO. 2 BRAKE TUBE CLAMP | *10 | NO. 1 BRAKE TUBE CLAMP |
| *11 | CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE | *12 | CLUTCH MASTER CYLINDER TUBE CLAMP |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | • | Non-reusable part | |
| Lithium soap base glycol grease | - | - |
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | BRAKE BOOSTER ASSEMBLY | *2 | BRAKE VACUUM CHECK VALVE ASSEMBLY |
| *3 | VACUUM WARNING SWITCH ASSEMBLY | *4 | CHECK VALVE GROMMET |
| *5 | VACUUM WARNING SWITCH GROMMET | - | - |
| • | Non-reusable part | - | - |
