Components [09/2024 - ]
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FRONT NO. 1 CONSOLE BOX INSERT | *2 | NO. 1 AIR DUCT |
| • | Non-reusable part | - | - |

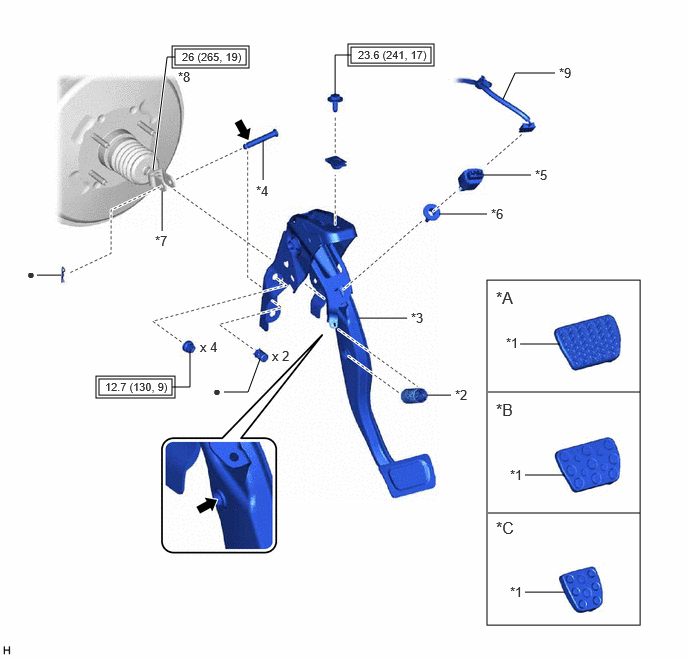

Fig 2: Brake Pedal (For Gasoline Model) Replacement Components With Torque Specifications [09/2024 - ] (2 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for CVT | *B | for Automatic Transaxle |
| *C | for Manual Transaxle | - | - |
| *1 | BRAKE PEDAL PAD | *2 | BRAKE PEDAL RETURN SPRING |
| *3 | BRAKE PEDAL SUPPORT ASSEMBLY | *4 | PUSH ROD PIN |
| *5 | STOP LIGHT SWITCH ASSEMBLY | *6 | STOP LIGHT SWITCH MOUNTING ADJUSTER |
| *7 | BRAKE MASTER CYLINDER PUSH ROD CLEVIS | *8 | LOCK NUT |
| *9 | WIRE HARNESS | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | • | Non-reusable part | |
| Lithium soap base glycol grease | - | - |
