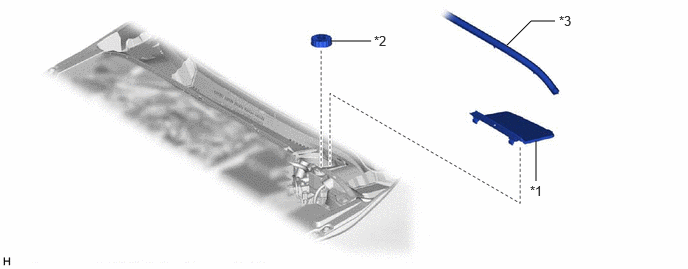

Components [09/2022 - 11/2022]
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | CENTER COWL TOP VENTILATOR LOUVER | *2 | BRAKE MASTER CYLINDER RESERVOIR FILLER CAP ASSEMBLY |
| *3 | HOOD TO COWL TOP SEAL | - | - |

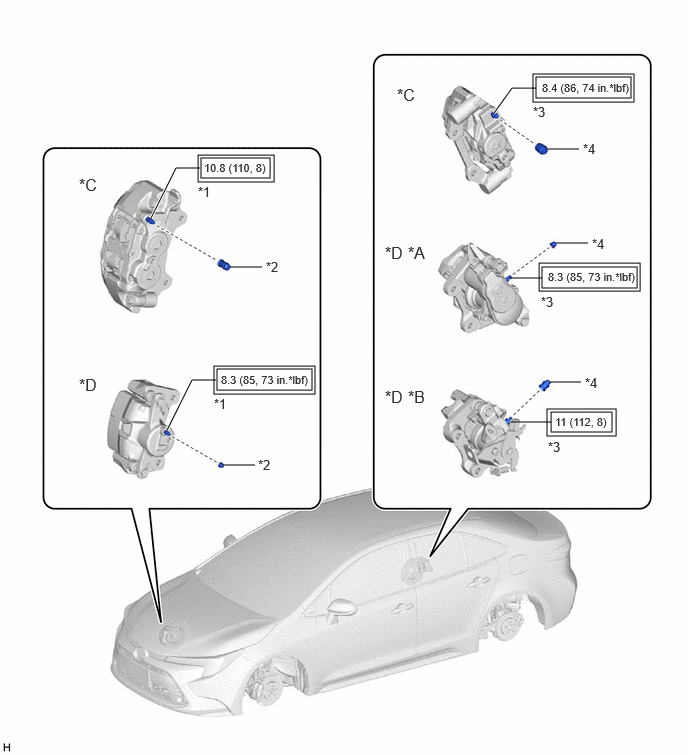

Fig 2: Brake Fluid (For Gasoline Model) Replacement Components With Torque Specifications [09/2022 - 11/2022] (2 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/ Electric Parking Brake | *B | w/o Electric Parking Brake |
| *C | for G16E-GTS | *D | except G16E-GTS |
| *1 | FRONT DISC BRAKE BLEEDER PLUG | *2 | FRONT DISC BRAKE BLEEDER PLUG CAP |
| *3 | REAR DISC BRAKE BLEEDER PLUG | *4 | REAR DISC BRAKE BLEEDER PLUG CAP |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |
