Components [09/2022 - ]

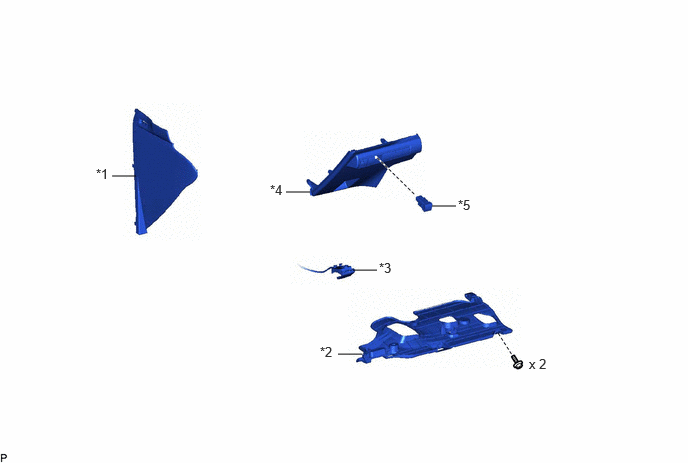

Fig 1: Trip Switch Rheostat Replacement Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	NO. 1 INSTRUMENT SIDE PANEL	*2	NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
*3	HOOD LOCK CONTROL LEVER SUB-ASSEMBLY	*4	LOWER INSTRUMENT PANEL FINISH PANEL
*5	TRIP SWITCH	-	-
