Components [06/2018 - ]

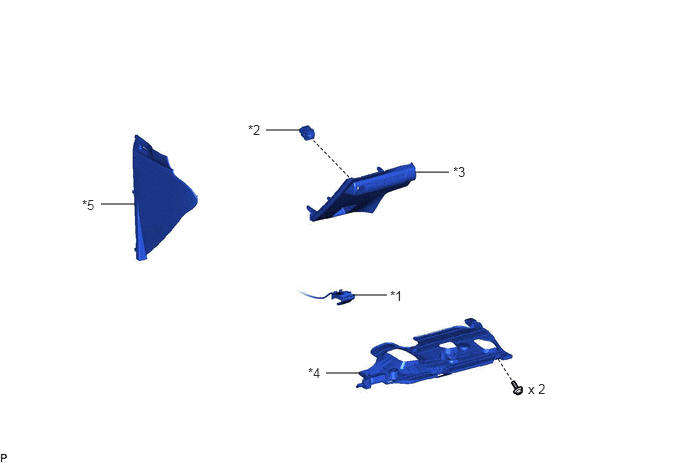

Fig 1: Light Control Rheostat Replacement Components
GTY860306Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 HOOD LOCK CONTROL LEVER SUB-ASSEMBLY *2 LIGHT CONTROL RHEOSTAT
*3 LOWER INSTRUMENT PANEL FINISH PANEL *4 NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
*5 NO. 1 INSTRUMENT SIDE PANEL - -
