Meter / Gauge / Display - Service Information
>>
HEADUP Display
>>
Components [09/2024 - ]
Components [09/2024 - ]

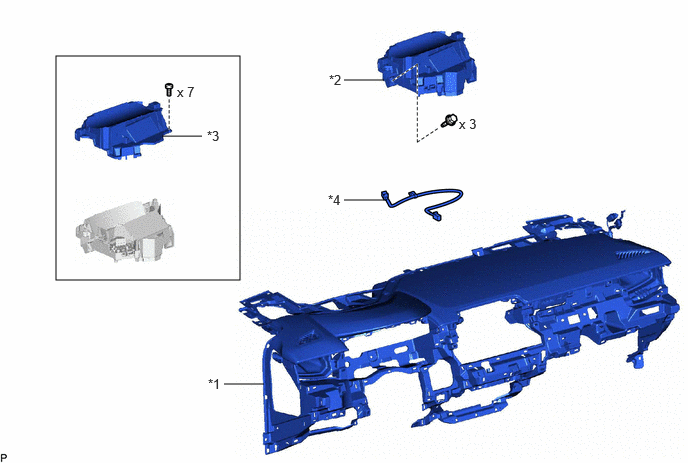

Fig 1: Headup Display Replacement Components [09/2024 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout
Description
Callout
Description
*1
INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
*2
METER MIRROR SUB-ASSEMBLY
*3
NO. 1 COMBINATION METER MIRROR PLATE
*4
HEADUP DISPLAY WIRE
