HEADUP Display
>>
Components [06/2018 - 09/2022]
Components [06/2018 - 09/2022]

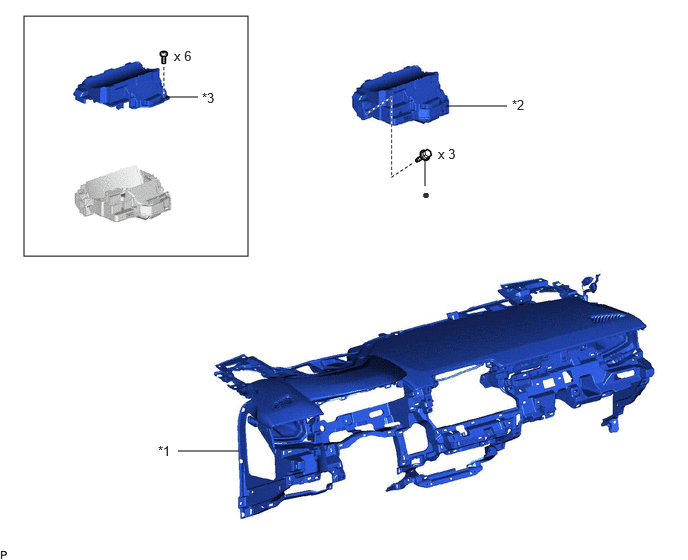

Fig 1: Headup Display Replacement Components [06/2018 - 09/2022]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout
Description
Callout
Description
*1
INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
*2
METER MIRROR SUB-ASSEMBLY
*3
NO. 1 COMBINATION METER MIRROR PLATE
-
-
•
Non-reusable part
-
-
